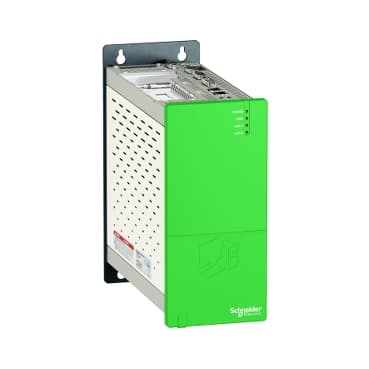

HMIBPHDD2701
Product ID:30080
Updated: 2026/4/3
Key Features
- 1Deploy robust performance with a Core 2 Duo P8400 and 4GB DDR3 RAM. 2、Ensure durable connectivity via Ethernet, USB 2.0, and serial links. 3、Access enhanced storage with a 500GB enterprise hard disk. 4、Install flexibly with vertical or flat mounting using M5 screws. 5、Rely on comprehensive 18-month warranty and industrial certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony iPC | Product or Component Type | Operator dialogue terminal |
| Device short name | BOX PC Performance | Range Compatibility | Harmony iDisplay |
| compatibility code | BOX PC Performance | Processor name | Core 2 Duo P8400 2.26 GHz cache 3 MB |
| Chipset type | Intel GM45 1066 MHz | Video controller type | Mobile Intel Graphics Media Accelerator (GMA) 4500MHD, 224 Mb |
| Operating system | Windows 10 IoT Enterprise 64 bit switched from Windows 8.1 in Q1 2018)multi-language | Software package | Vijeo Designer run time demo |
| Data storage equipment | 500 GB enterprise hard disk | Port Ethernet | 10BASE-T/100BASE-T/1000BASE-T |
| Memory description | 4 GB RAM DDR3 internal not expandable)<br /> SDRAM saved memory | Number of slots | 2 slot(s) |
| Type of cooling | Fan | Integrated connection type | Ethernet TCP/IP 2 RJ45<br />DVI-I video port DVI-I<br />COM1 serial link male SUB-D 9 RS232C 115 kbauds<br />COM2 serial link male SUB-D 9 RS232C 115 kbauds<br />USB 2.0 port USB type A 480 Mbit/s front panel<br />USB 2.0 port 4 USB type A 480 Mbit/s top panel<br />COM3 serial link male SUB-D 10 RS232/422/485 115 kbauds<br />DVI-I video port (optional)<br />COM3 serial link (optional) 4X |
| [Us] rated supply voltage | 24 V DC power supply | Supply voltage limits | 18…30 V |
| Line Rated Current | 6 A | Inrush current | 7 A |
| Control type | ON/OFF push-button equipment ON and OFF)<br />Push-button reset) | Main type | Performance |
| Height | 10.6 in (270 mm) | Width | 10.2 in (260 mm) |
| Net Weight | 6.2 lb(US) (2.8 kg) | Standards | CSA C22.2 No 142<br /> ANSI/ISA 12-12-01<br /> UL 1604<br /> UL 508<br />Class I division 2 CSA C22.2 No 213 |
| Product certifications | CE<br />CULus<br />ATEX zone 22 dust<br />C-tick<br />GOST | Pollution degree | 2 EN 61131-2 Ed.3 |
| Electromagnetic compatibility | Immunity to high frequency interference conforming to EN 61131-2 Ed.3 | Ambient air temperature for storage | -4…140 °F (-20…60 °C) IEC 60068-2-2 test Ab<br />-4…140 °F (-20…60 °C) IEC 60068-2-2 test Bb<br />-4…140 °F (-20…60 °C) IEC 60068-2-14 test Na |
| Relative Humidity | 10…85 % IEC 60068-2-30 test Db | Ambient air temperature for operation | 32…122 °F (0…50 °C) vertical installation) EN 61131-2 Ed.3<br />32…113 °F (0…45 °C) vertical installation when using RAID option) EN 61131-2 Ed.3<br />32…113 °F (0…45 °C) vertical installation when using Gigabit Ethernet with HDD storage device) EN 61131-2 Ed.3 |
| Operating altitude | 6561.68 ft (2000 m) EN 61131-2 Ed.3 | Vibration resistance | 0.125 gn 5…100 Hz) continuous IEC 60068-2-6<br />0.250 gn 5…100 Hz) intermittently IEC 60068-2-6 |
Specifications may be subject to change without notice
