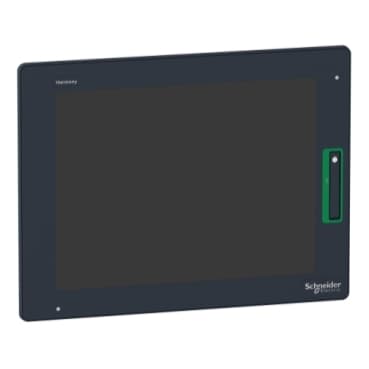

HMIDID64DTD1
Product ID:30095
Updated: 2026/7/14
Key Features
- 1Deliver clear 1024x768 XGA visuals with 16 million colors.
- 2Support reliable multi-touch for up to 1 million cycles.
- 3Ensure durability with IP67-rated front panel protection.
- 4Operate across a wide 12-24V DC power range.
- 5Maximize uptime with a 50,000-hour backlight lifespan.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony iPC | Product or Component Type | Flat screen |
| Terminal type | Touchscreen display | Device mounting | Flush |
| Display resolution | 1024 x 768 pixels XGA | Display size | 12.1 inch |
| Aspect ratio | 4:3 | Display type | Colour TFT LCD |
| Display colour | 16 million colours | Luminance | 9.3 fc (100 cd/m²)<br />37.2 fc (400 cd/m²) |
| Backlight lifespan | 50000 hours | Touch panel | Multi touch analogue resistive 1000000 cycles |
| Integrated connection type | DVI-D video port<br />USB 2.0 type A<br />USB 2.0 type mini B | Function Available | Brightness sensor |
| [Us] rated supply voltage | 12...24 V DC power supply | Power consumption in W | 17 W |
| Provided equipment | 1 cable 16.4 ft (5 m) DVI-D<br />1 cable 16.4 ft (5 m) USB type A<br />1 USB cable mini B USB 2.0 | cut-out dimensions | 301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm |
| Depth | 2.6 in (67 mm) | Height | 9.5 in (241 mm) |
| Width | 12.4 in (315 mm) | Net Weight | 8.6 lb(US) (3.9 kg) |
| Standards | UL 508<br /> ANSI/ISA 12-12-01<br />Class I division 2 CSA C22.2 No 213<br /> CSA C22.2 No 142 | Product certifications | RCM<br />EAC<br />CE |
| IP degree of protection | Front panel IP67f<br />Front panel IP66f UL 50E | NEMA degree of protection | NEMA 4X/13 front panel |
| Pollution degree | 2 | Ambient air temperature for storage | -4…140 °F (-20…60 °C) |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) EN 61131-2 | Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) IEC 61131-2<br />9.8 m/s² 9…150 Hz) IEC 61131-2 |
| Shock resistance | 147 m/s² EN/IEC 61131-2 |
Specifications may be subject to change without notice
