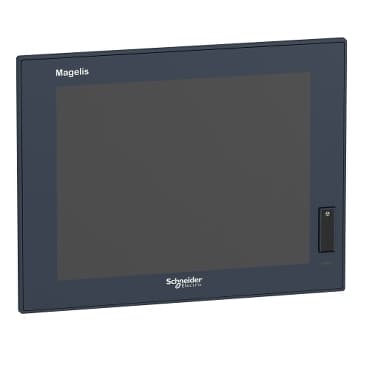

HMIDM6421
Product ID:30097
Updated: 2026/7/14
Key Features
- 1Operate reliably in harsh industrial environments with robust durability.
- 2Achieve superior clarity with a 2048x2048 pixel advanced touchscreen.
- 3Ensure clear visibility using a high 500:1 contrast ratio display.
- 4Integrate seamlessly into panels with flush device mounting.
- 5Access validated solutions through Schneider Electric StruxureWare software support.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony iPC | Product or Component Type | Flat screen |
| Terminal type | Touchscreen display | Device mounting | Flush |
| Product Compatibility | Modular Box PC | View angle horizontal x vertical | 140 x 115° |
| Contrast Ratio | 500:1 | Touchscreen resolution | 2048 x 2048 |
| Display resolution | 1024 x 768 pixels XGA | Display size | 12.1 inch |
| Aspect ratio | 4:3 | Display type | LED<br />Colour TFT LCD |
| Display colour | 16777216 colors | Luminance | 27.9 fc (300 cd/m²) |
| Backlight lifespan | 50000 hours 77 °F (25 °C) | Touch panel | Single touch analogue resistive |
| Integrated connection type | USB 2.0 type A | Function Available | Operate with water on screen |
| [Us] rated supply voltage | 24 V DC power supply<br />100...240 V AC power supply | Supply voltage limits | 18…36 V |
| Inrush current | 8.9 A | Power consumption in W | 57.87 W Box PC HMIBMP)<br />52.87 W Box PC HMIBMU) |
| Local signalling | Status LED | Depth | Enclosure : 2.6 in (66.3 mm)<br />0.3 in (7 mm) |
| Height | 9.6 in (245.1 mm) | Width | 12.6 in (319.1 mm) |
| Net Weight | 5.07 lb(US) (2.3 kg) | Standards | Class I division 2 CSA C22.2 No 213<br /> CSA C22.2 No 142<br /> UL 6110-2-201<br />Class I division 2 ANSI/ISA 12-12-01 |
| Product certifications | CE<br />C-tick<br />IEC-Ex<br />EAC | IP degree of protection | IP66 |
| NEMA degree of protection | NEMA 4X | Pollution degree | 2 |
| Ambient air temperature for storage | -22…158 °F (-30…70 °C) | Relative Humidity | 10…95 % non-condensing |
| Ambient air temperature for operation | 32…131 °F (0…55 °C) | Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | 1 gn 5…500 Hz) HDD<br />2 gn 5…500 Hz) SSD<br />2 gn 5…500 Hz) Cfast card |
Specifications may be subject to change without notice
