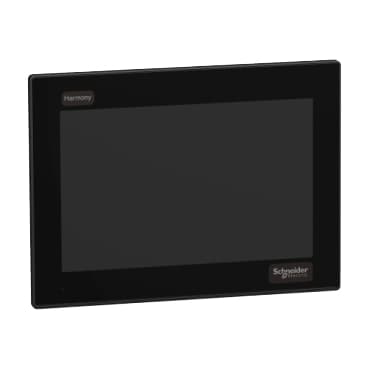

HMIDM6500WC
Product ID:30098
Updated: 2026/4/3
Key Features
- 1Deliver WXGA resolution (1280x800) for sharp industrial visuals. 2、Feature 2-point PCAP touch for intuitive operation. 3、Reduce noise interference to enhance signal clarity. 4、Provide IP66F, IP67F, and NEMA 4X/13 protection ratings. 5、Support VESA 100 and front mounting for installation flexibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony P6 | Product or Component Type | Touch panel screen |
| Display size | 10.1 inch | Aspect ratio | 16:9 |
| Display colour | 16 million colours | Pixel resolution | 1280 x 800 |
| Inrush current | 30 A | Device mounting | Panel mounting<br />Direct mounting VESA |
| cut-out dimensions | 255 (+ 1/- 0) x 185 (+ 1/- 0) mm | Width | 10.6 in (268.5 mm) |
| Height | 7.8 in (198.5 mm) | Net Weight | 4.4 lb(US) (2.0 kg) |
| Product certifications | RCM<br />KC<br />UKCA<br />DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot)<br />ATEX zone 22 dust (DC model, front USB cover must be locked with screw)<br />ATEX zone 2 (DC model, front USB cover must be locked with screw)<br />CULus Class 1 Division 2 (without DIO option)<br />IECEx zone 2 (DC model, front USB cover must be locked with screw)<br />IECEx zone 22 (DC model, front USB cover must be locked with screw) | Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Pollution degree | 2 | Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | 147 m/s² IEC 61131-2<br />147 m/s² 3 shocks in each direction X, Y and Z |
Specifications may be subject to change without notice
