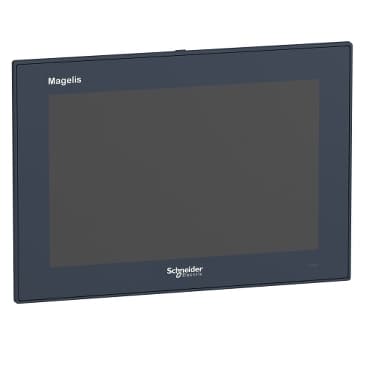

HMIDM6521
Product ID:30100
Updated: 2026/7/14
Key Features
- 1Utilize a 12-inch multi-touch display for interactive industrial applications.
- 2Integrate easily with Harmony HMIBM modular box and HMIDAD adapter.
- 3Replace the display independently to minimize system downtime.
- 4Ensure compliance with cULus Industrial Control and Hazardous Locations certifications.
- 5Receive sustainable packaging made from recycled cardboard.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony iPC | Product or Component Type | Flat screen |
| Terminal type | Touchscreen display | Device mounting | Flush |
| Product Compatibility | Modular Box PC | View angle horizontal x vertical | 140 x 115° |
| Contrast Ratio | 500:1 | Touchscreen resolution | 2048 x 2048 |
| Display resolution | 1280 x 800 pixels WXGA | Display size | 12.1 inch |
| Aspect ratio | 16:9 | Display type | Colour TFT LCD<br />LED |
| Display colour | 16777216 colors | Luminance | 27.9 fc (300 cd/m²) |
| Backlight lifespan | 50000 hours 77 °F (25 °C) | Touch panel | Multi-touch projected capactive technology (PCT) |
| Function Available | Operate with water on screen | [Us] rated supply voltage | 24 V DC power supply<br />100...240 V AC power supply |
| Supply voltage limits | 18…36 V | Inrush current | 8.9 A |
| Power consumption in W | 58.65 W Box PC HMIBMP)<br />53.65 W Box PC HMIBMU) | Local signalling | Status LED |
| Depth | Enclosure : 1.1 in (28 mm)<br />0.3 in (7 mm) | Height | 12.2 in (309 mm) |
| Width | 19.2 in (488.3 mm) | Net Weight | 4.96 lb(US) (2.25 kg) |
| Standards | Class I division 2 CSA C22.2 No 213<br /> CSA C22.2 No 142<br /> UL 6110-2-201<br />Class I division 2 ANSI/ISA 12-12-01 | Product certifications | IEC-Ex<br />EAC<br />CE<br />C-tick |
| IP degree of protection | IP66 | NEMA degree of protection | NEMA 4X |
| Pollution degree | 2 | Ambient air temperature for storage | -22…158 °F (-30…70 °C) |
| Relative Humidity | 10…95 % non-condensing | Ambient air temperature for operation | 32…131 °F (0…55 °C) |
| Operating altitude | 6561.68 ft (2000 m) | Vibration resistance | 1 gn 5…500 Hz) HDD<br />2 gn 5…500 Hz) SSD<br />2 gn 5…500 Hz) Cfast card |
Specifications may be subject to change without notice
