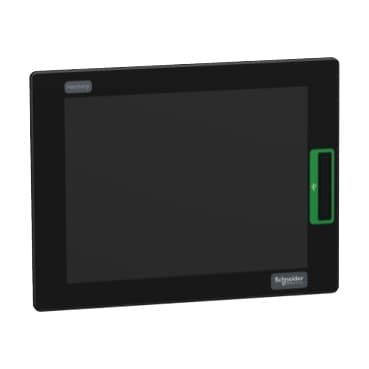

HMIDM6600TM
Product ID:30101
Updated: 2026/7/14
Key Features
- 1Display vibrant visuals on a 12.1-inch XGA screen with 16 million colors.
- 2Operate intuitively using the 2-point analog multi-touch interface.
- 3Ensure durability with a plastic overlay and 50,000-hour backlight lifespan.
- 4Connect devices easily via the front-mounted USB A port.
- 5Deploy confidently in harsh conditions with IP66F and IP67F protection ratings.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony P6 | Product or Component Type | Touch panel screen |
| Display size | 12.1 inch | Aspect ratio | 4:3 |
| Display colour | 16 million colours | Pixel resolution | 1024 x 768 |
| Inrush current | 30 A | Device mounting | Panel mounting<br />Direct mounting VESA |
| cut-out dimensions | 301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm | Width | 9.5 in (241 mm) |
| Height | 1.2 in (30 mm) | Net Weight | 5.3 lb(US) (2.4 kg) |
| Product certifications | RCM<br />KC<br />UKCA<br />DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot)<br />ATEX zone 22 dust (DC model, front USB cover must be locked with screw)<br />ATEX zone 2 (DC model, front USB cover must be locked with screw)<br />CULus Class 1 Division 2 (without DIO option)<br />IECEx zone 2 (DC model, front USB cover must be locked with screw)<br />IECEx zone 22 (DC model, front USB cover must be locked with screw) | Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Pollution degree | 2 | Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | 147 m/s² IEC 61131-2<br />147 m/s² 3 shocks in each direction X, Y and Z |
Specifications may be subject to change without notice
