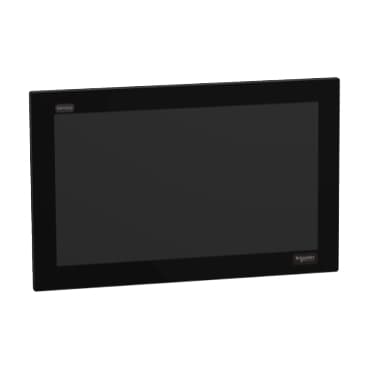

HMIDM6800WC
Product ID:29909
Updated: 2026/4/3
Key Features
- 1Deliver high-resolution visuals on a 19" Full HD display with 16 million colors. 2、Enable precise operation with 2-point projected capacitive touch technology. 3、Minimize environmental interference using an optimized noise filter. 4、Protect against harsh conditions with IP66F and IP67F front panel ratings. 5、Offer flexible installation via VESA 100x100 and direct mounting compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony P6 | Product or Component Type | Touch panel screen |
| Display size | 18.5 inch | Aspect ratio | 16:9 |
| Display colour | 16 million colours | Pixel resolution | 1920 x 1080 |
| Inrush current | 30 A | Device mounting | Panel mounting<br />Direct mounting VESA |
| cut-out dimensions | 449.5 (+1/-0) x 279.5 (+1/-0) mm | Width | 18.3 in (463.6 mm) |
| Height | 11.6 in (293.6 mm) | Net Weight | 10.8 lb(US) (4.9 kg) |
| Product certifications | RCM<br />KC<br />UKCA<br />DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot)<br />ATEX zone 22 dust (DC model, front USB cover must be locked with screw)<br />ATEX zone 2 (DC model, front USB cover must be locked with screw)<br />CULus Class 1 Division 2 (without DIO option)<br />IECEx zone 2 (DC model, front USB cover must be locked with screw)<br />IECEx zone 22 (DC model, front USB cover must be locked with screw) | Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Pollution degree | 2 | Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | 147 m/s² IEC 61131-2<br />147 m/s² 3 shocks in each direction X, Y and Z |
Specifications may be subject to change without notice
