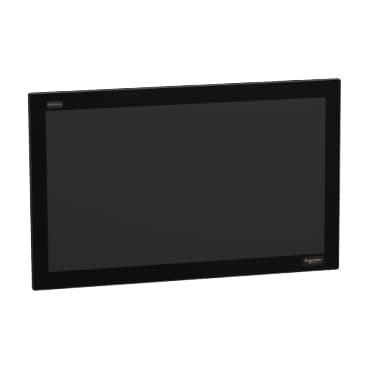

HMIDM6900WC
Product ID:29911
Updated: 2026/7/14
Key Features
- 1Deliver clear 1920x1080 full HD visibility.
- 2Enable 2-point multi-touch with Standard, Glove, and Water modes.
- 3Ensure reliable operation with a 50,000-hour backlight lifespan.
- 4Provide robust protection with IP66F, IP67F, and NEMA Type ratings.
- 5Offer flexible installation via panel and VESA mounting.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony P6 | Product or Component Type | Touch panel screen |
| Display size | 21.5 inch | Aspect ratio | 16:9 |
| Display colour | 16 million colours | Pixel resolution | 1920 x 1080 |
| Inrush current | 30 A | Device mounting | Panel mounting<br />Direct mounting VESA |
| cut-out dimensions | 518.5 (+1/-0) x 316.5 (+1/-0) mm | Width | 21.0 in (532.6 mm) |
| Height | 13.02 in (330.6 mm) | Net Weight | 14.3 lb(US) (6.5 kg) |
| Product certifications | RCM<br />KC<br />UKCA<br />DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot)<br />ATEX zone 22 dust (DC model, front USB cover must be locked with screw)<br />ATEX zone 2 (DC model, front USB cover must be locked with screw)<br />CULus Class 1 Division 2 (without DIO option)<br />IECEx zone 2 (DC model, front USB cover must be locked with screw)<br />IECEx zone 22 (DC model, front USB cover must be locked with screw) | Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Pollution degree | 2 | Operating altitude | 6561.68 ft (2000 m) |
| Shock resistance | 147 m/s² IEC 61131-2<br />147 m/s² 3 shocks in each direction X, Y and Z |
Specifications may be subject to change without notice
