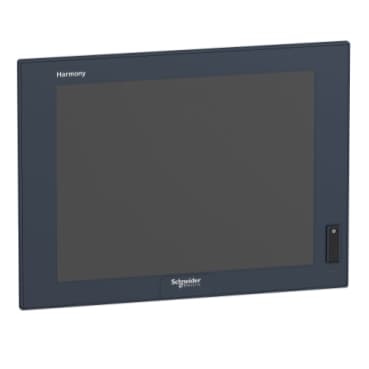

HMIDM7421
Product ID:29913
Updated: 2026/4/3
Key Features
- 1Utilize a 15-inch LED color TFT LCD with 2048 x 2048 resolution. 2、Interact precisely with a single-touch analog resistive panel. 3、Deploy in harsh conditions with IP66 and NEMA 4X ratings. 4、Operate reliably even with water on the screen. 5、Meet global standards with ATEX and EAC certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony iPC | Product or Component Type | Flat screen |
| Terminal type | Touchscreen display | Device mounting | Flush |
| Product Compatibility | Modular Box PC | View angle horizontal x vertical | 140 x 115° |
| Contrast Ratio | 500:1 | Pixel resolution | 2048 x 2048 |
| Touchscreen resolution | 2048 x 2048 | Display resolution | 1024 x 768 pixels XGA |
| Display size | 15 inch | Aspect ratio | 4:3 |
| Display type | LED<br />Colour TFT LCD | Display colour | 16777216 colors |
| Luminance | 27.9 fc (300 cd/m²) | Backlight lifespan | 50000 hours 77 °F (25 °C) |
| Touch panel | Single touch analogue resistive | Integrated connection type | USB 2.0 type A |
| Function Available | Operate with water on screen | [Us] rated supply voltage | 24 V DC power supply<br />100...240 V AC power supply |
| Supply voltage limits | 18…36 V | Inrush current | 8.9 A |
| Power consumption in W | 53.04 W Box PC HMIBMP)<br />48.04 W Box PC HMIBMU) | Local signalling | Status LED |
| Depth | Enclosure : 1.1 in (28 mm)<br />0.3 in (7 mm) | Height | 11.4 in (290 mm) |
| Width | 15.4 in (390.7 mm) | Net Weight | 9.3 lb(US) (4.2 kg) |
| Standards | Class I division 2 CSA C22.2 No 213<br /> CSA C22.2 No 142<br /> UL 6110-2-201<br />Class I division 2 ANSI/ISA 12-12-01 | Product certifications | EAC<br />ATEX<br />C-tick<br />IEC-Ex<br />Marine GL Bridge<br />CE |
| IP degree of protection | IP66 | NEMA degree of protection | NEMA 4X |
| Pollution degree | 2 | Ambient air temperature for storage | -22…158 °F (-30…70 °C) |
| Relative Humidity | 10…95 % non-condensing | Ambient air temperature for operation | 32…131 °F (0…55 °C) |
| Operating altitude | 6561.68 ft (2000 m) | Vibration resistance | 1 gn 5…500 Hz) HDD<br />2 gn 5…500 Hz) SSD<br />2 gn 5…500 Hz) Cfast card |
Specifications may be subject to change without notice
