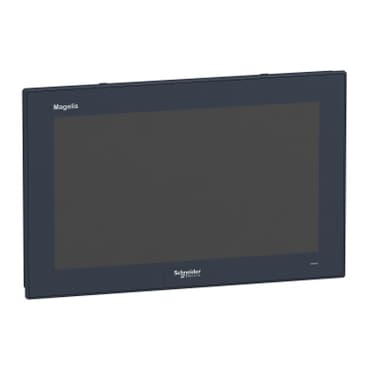

HMIDM7521
Product ID:29914
Updated: 2026/7/14
Key Features
- 1Feature a 15.6-inch TFT LCD with 1366x768 resolution.
- 2Utilize multi-touch projected capacitive technology for intuitive control.
- 3Provide IP66/NEMA 4X protection for harsh industrial environments.
- 4Operate from 32°F to 131°F and up to 6561 ft altitude.
- 5Meet ATEX, IEC-Ex, Marine GL, and EAC certifications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony iPC | Product or Component Type | Flat screen |
| Terminal type | Touchscreen display | Device mounting | Flush |
| Product Compatibility | Modular Box PC | View angle horizontal x vertical | 150 x 140° |
| Contrast Ratio | 500:1 | Pixel resolution | 1366 x 768 |
| Touchscreen resolution | 4096 x 4096 | Display resolution | 1366 x 768 pixels WHD FWXGA |
| Display size | 15.6 inch | Aspect ratio | 16:9 |
| Display type | Colour TFT LCD<br />LED | Display colour | 16777216 colors |
| Luminance | 27.9 fc (300 cd/m²) | Backlight lifespan | 50000 hours 77 °F (25 °C) |
| Touch panel | Multi-touch projected capactive technology (PCT) | Function Available | Operate with water on screen |
| [Us] rated supply voltage | 24 V DC power supply<br />100...240 V AC power supply | Supply voltage limits | 18…36 V |
| Inrush current | 8.9 A | Power consumption in W | 54.5 W Box PC HMIBMP)<br />49.5 W Box PC HMIBMU) |
| Local signalling | Status LED | Depth | Enclosure : 1.1 in (28 mm)<br />0.3 in (7 mm) |
| Height | 10.6 in (269 mm) | Width | 16.5 in (419.7 mm) |
| Net Weight | 9.5 lb(US) (4.3 kg) | Standards | Class I division 2 CSA C22.2 No 213<br /> CSA C22.2 No 142<br /> UL 6110-2-201<br />Class I division 2 ANSI/ISA 12-12-01 |
| Product certifications | IEC-Ex<br />C-tick<br />EAC<br />Marine GL Bridge<br />ATEX<br />CE | IP degree of protection | IP66 |
| NEMA degree of protection | NEMA 4X | Pollution degree | 2 |
| Ambient air temperature for storage | -22…158 °F (-30…70 °C) | Relative Humidity | 10…95 % non-condensing |
| Ambient air temperature for operation | 32…131 °F (0…55 °C) | Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | 1 gn 5…500 Hz) HDD<br />2 gn 5…500 Hz) SSD<br />2 gn 5…500 Hz) Cfast card |
Specifications may be subject to change without notice
