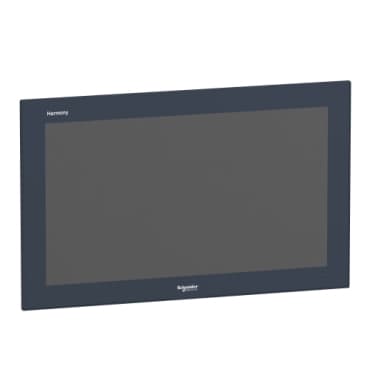

HMIDMA521
Product ID:29916
Updated: 2026/4/3
Key Features
- 1Deliver sharp visuals with a 22-inch Full HD (1920x1080) TFT LCD display. 2、Enable intuitive control using a 5-point projected capacitive multi-touch screen. 3、Ensure durability with IP66/NEMA 4X protection against dust and water ingress. 4、Simplify installation via versatile flush-mounting design for panel integration. 5、Power reliably with a stable 24V DC supply for harsh industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony iPC | Product or Component Type | Flat screen |
| Terminal type | Touchscreen display | Device mounting | Flush |
| Product Compatibility | Modular Box PC | View angle horizontal x vertical | 150 x 150° |
| Contrast Ratio | 500:1 | Pixel resolution | 1024 x 1024 |
| Touchscreen resolution | 4096 x 4096 | Display resolution | 1920 x 1080 pixels full HD |
| Display size | 21.5 inch | Aspect ratio | 16:9 |
| Display type | LED<br />Colour TFT LCD | Display colour | 16777216 colors |
| Luminance | 27.9 fc (300 cd/m²) | Backlight lifespan | 50000 hours 77 °F (25 °C) |
| Touch panel | Multi-touch projected capactive technology (PCT) | Function Available | Operate with water on screen |
| [Us] rated supply voltage | 24 V DC power supply<br />100...240 V AC power supply | Supply voltage limits | 18…36 V |
| Inrush current | 8.9 A | Power consumption in W | 64.85 W Box PC HMIBMP)<br />59.85 W Box PC HMIBMU) |
| Local signalling | Status LED | Depth | Enclosure : 1.1 in (28 mm)<br />0.3 in (7 mm) |
| Height | 13.8 in (349.8 mm) | Width | 22.0 in (558.4 mm) |
| Net Weight | 14.6 lb(US) (6.6 kg) | Standards | UL 60950<br /> CSA C22.2 No. 60950 |
| Product certifications | CCC<br />C-tick<br />EAC | IP degree of protection | IP66 |
| NEMA degree of protection | NEMA 4X | Pollution degree | 2 |
| Ambient air temperature for storage | -22…158 °F (-30…70 °C) | Relative Humidity | 10…95 % non-condensing |
| Ambient air temperature for operation | 32…131 °F (0…55 °C) | Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | 1 gn 5…500 Hz) HDD<br />2 gn 5…500 Hz) SSD<br />2 gn 5…500 Hz) Cfast card |
Specifications may be subject to change without notice
