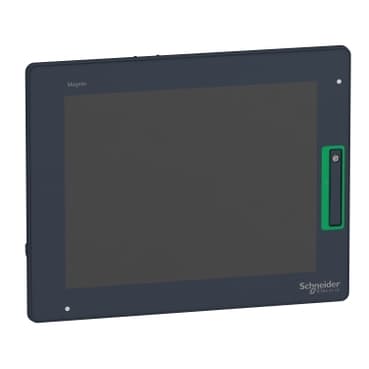

HMIDT542FC
Product ID:29922
Updated: 2026/7/14
Key Features
- 1Deliver high-resolution visuals on a 10.4-inch SVGA display with 800 x 600 pixels.
- 2Enable seamless connectivity via dual serial and dual Ethernet communication ports.
- 3Operate precisely with a multi-touch analogue resistive touch panel.
- 4Protect data access with IP66 and IP67 rated front USB ports.
- 5Install easily thanks to compact dimensions of 272.5mm W x 214.5mm H x 67mm D.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony GTU | Product or Component Type | Flat screen |
| Terminal type | Touchscreen display | [Us] rated supply voltage | 12...24 V DC power supply |
| Supply voltage limits | 10.8…28.8 V | Power Consumption in W | 15 W |
| Inrush current | 30 A | Integrated connection type | USB 2.0 type A |
| Touchscreen resolution | 1024 x 1024 | Pixel resolution | 800 x 600 |
| Display size | 10.4 inch | Aspect ratio | 4:3 |
| Display type | Colour TFT LCD | Display Resolution | 800 x 600 pixels SVGA |
| Display colour | 16 million colours | Backlight lifespan | 50000 hours |
| Touch panel | Multi touch analogue resistive | Provided equipment | 1 flash card |
| Function Available | Brightness sensor | Type of cooling | Natural convection |
| Type of Installation | Indoor installation | cut-out dimensions | 259 (+ 1/- 0) x 201 (+ 1/- 0) mm |
| Width | 10.7 in (272.5 mm) | Height | 8.4 in (214.5 mm) |
| Depth | 2.6 in (67 mm) | Net Weight | 6.0 lb(US) (2.7 kg) |
| IP degree of protection | Front panel IP66 | NEMA degree of protection | NEMA 4X front panel |
| Standards | UL 508 | Product certifications | CE<br />UKCA<br />UKEX |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) IEC 61131-2 | Ambient air temperature for storage | -4…140 °F (-20…60 °C) |
| Relative Humidity | 10…90 % non-condensing | Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) IEC 61131-2 | Shock resistance | 147 m/s²IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
Specifications may be subject to change without notice
