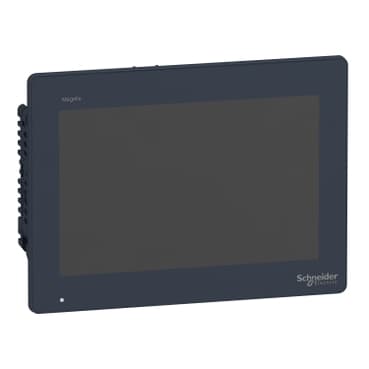

HMIDT551FC
Product ID:29924
Updated: 2026/7/14
Key Features
- 1Feature a 10.1-inch WXGA display with 1280x800 resolution.
- 2Equip with dual serial ports and Gigabit Ethernet for robust connectivity.
- 3Operate at 6.5W for significant energy cost savings.
- 4Build with IP66 protection for reliable indoor durability.
- 5Support RS-232/485 and USB 2.0 for versatile peripheral integration.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony GTU | Product or Component Type | Advanced touchscreen panel |
| Terminal type | Touchscreen display | [Us] rated supply voltage | 12...24 V DC power supply |
| Supply voltage limits | 10.8…28.8 V | Power Consumption in W | 6.5 W |
| Inrush current | 30 A | Touchscreen resolution | 1024 x 1024 |
| Pixel resolution | 1280 x 800 | Display size | 10.1 inch |
| Aspect ratio | 4:3 | Display type | Colour TFT LCD |
| Display Resolution | 1280 x 800 pixels WVGA | Display colour | 262144 colors |
| Backlight lifespan | 50000 hours | Touch panel | Single touch analogue resistive |
| Provided equipment | 1 flash card | Type of cooling | Natural convection |
| Type of Installation | Indoor installation | cut-out dimensions | 190 (+ 1/- 0) x 135 (+ 1/- 0) mm |
| Width | 10.6 in (268.5 mm) | Height | 7.8 in (198.5 mm) |
| Depth | 2.6 in (67 mm) | Net Weight | 5.5 lb(US) (2.5 kg) |
| IP degree of protection | Front panel IP66 | NEMA degree of protection | NEMA 4X front panel |
| Standards | UL 508 | Product certifications | CE<br />UKCA<br />UKEX |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) EN 61131-2 | Ambient air temperature for storage | -4…140 °F (-20…60 °C) |
| Relative Humidity | 10…90 % non-condensing | Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) EN/IEC 61131-2 | Shock resistance | 147 m/s²EN/IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2 |
Specifications may be subject to change without notice
