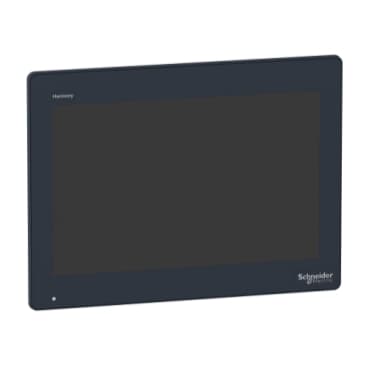

HMIDT651
Product ID:29928
Updated: 2026/7/14
Key Features
- 1Deliver clear visuals on a 12.1" color TFT LCD with 1280 x 800 resolution.
- 2Operate reliably with a versatile 12-24VDC power supply.
- 3Control processes easily via an advanced smartphone-like touch interface.
- 4Withstand harsh conditions with a robust operating temperature up to 60°C.
- 5Enhance connectivity with dual LAN ports and removable storage support.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony GTU | Product or Component Type | Advanced touchscreen panel |
| Terminal type | Touchscreen display | [Us] rated supply voltage | 12...24 V DC power supply |
| Supply voltage limits | 10.8…28.8 V | Power Consumption in W | 11.5 W |
| Inrush current | 30 A | Touchscreen resolution | 1024 x 1024 |
| Pixel resolution | 1280 x 800 | Display size | 12.1 inch |
| Aspect ratio | 4:3 | Display type | Colour TFT LCD |
| Display Resolution | 1280 x 800 pixels WVGA | Display colour | 262144 colors |
| Backlight lifespan | 50000 hours | Touch panel | Single touch analogue resistive |
| Type of cooling | Natural convection | Type of Installation | Indoor installation |
| cut-out dimensions | 295 (+ 1/- 0) x 217 (+ 1/- 0) mm | Width | 12.1 in (308.5 mm) |
| Height | 9.07 in (230.5 mm) | Depth | 2.6 in (67 mm) |
| Net Weight | 6.6 lb(US) (3 kg) | IP degree of protection | Front panel IP66<br />Front panel IP67 |
| NEMA degree of protection | NEMA 4X front panel | Standards | UL 508<br /> ANSI/ISA 12-12-01<br />Class I division 2 CSA C22.2 No 213<br /> CSA C22.2 No 142<br /> IEC 61132-2 |
| Product certifications | CULus<br />KC<br />CE<br />RCM<br />UKCA<br />UKEX | Ambient air temperature for operation | 32…140 °F (0…60 °C) IEC 61131-2 |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Relative Humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) | Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) IEC 61131-2<br />9.8 m/s² 9…150 Hz) IEC 61131-2 |
| Shock resistance | 147 m/s²IEC 61131-2 | Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
Specifications may be subject to change without notice
