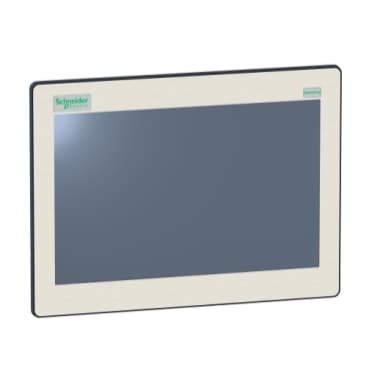

HMIDT65X
Product ID:29930
Updated: 2026/7/14
Key Features
- 1Withstand harsh environments with IP66 protection and chemical resistance.
- 2Ensure clear outdoor visibility with 1000 cd/m² sunlight-readable display.
- 3Operate reliably from -30°C to +70°C in extreme temperatures.
- 4Integrate seamlessly via dual network ports for Hybrid Process architecture.
- 5Reduce energy costs with only 12.5 W power consumption for continuous operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony GTUX | Product or Component Type | EXtreme touchscreen panel |
| Terminal type | Touchscreen display | [Us] rated supply voltage | 12 V DC power supply |
| Supply voltage limits | 10.8…28.8 V | Power consumption in W | 12.5 W |
| Inrush current | 30 A | Touchscreen resolution | 1024 x 1024 |
| Pixel resolution | 1280 x 800 | Display size | 12.1 inch |
| Aspect ratio | 4:3 | Display type | Colour TFT LCD |
| Display Resolution | 1280 x 800 pixels WVGA | Display colour | 262144 colors |
| Luminance | 92.9 fc (1000 cd/m²) | Touch panel | Single touch analogue resistive |
| Type of cooling | Natural convection | cut-out dimensions | 295 (+ 1/- 0) x 217 (+ 1/- 0) mm |
| Width | 12.1 in (308.5 mm) | Height | 9.07 in (230.5 mm) |
| Depth | 2.7 in (68 mm) | Net Weight | 7.05 lb(US) (3.2 kg) |
| IP degree of protection | IP66f<br /> IP67f<br />Front panel Type 4X | Standards | UL 61010<br /> UL 121201<br /> CSA C22.2 No 213<br /> CSA C22.2 No 61010-1<br /> IEC 61132-2 |
| Product Certifications | KC<br />CE<br />RCM<br />EAC<br />ATEX zone 2/22<br />IEC-Ex<br />UL<br />CSA<br />UKCA<br />UKEX | Ambient air temperature for operation | -22…158 °F (-30…70 °C) IEC 61131-2 |
| Ambient air temperature for storage | -22…158 °F (-30…70 °C) | Pollution degree | 2 |
| Environmental characteristic | Corrosive gas free<br />UV resistant | Relative Humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) | Vibration resistance | 7 mm constant amplitude 5…9 Hz) IEC 61131-2<br />19.6 m/s² 9…150 Hz) IEC 61131-2 |
| Shock resistance | 392 m/s²IEC 61131-2 | Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
Specifications may be subject to change without notice
