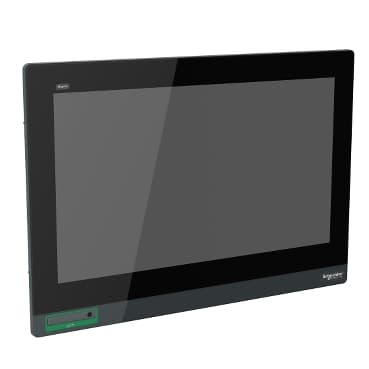

HMIDT952
Product ID:29935
Updated: 2026/4/3
Key Features
- 1Deliver vibrant visuals with a 1366 x 768 FWXGA resolution display. 2、Integrate seamlessly using USB 2.0 and RJ45 RS-232C/485 ports. 3、Operate intuitively via multi-touch projected capacitive technology. 4、Ensure durability with a robust IP66/IP67 front panel design. 5、Meet ANSI/ISA 12-12-01, CE, and CSA safety standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony GTU | Product or Component Type | Flat screen |
| Terminal type | Touchscreen display | [Us] rated supply voltage | 12...24 V DC power supply |
| Supply voltage limits | 10.8…28.8 V | Power Consumption in W | 19 W |
| Inrush current | 30 A | Integrated connection type | USB 2.0 type A<br />USB 2.0 type mini B |
| Touchscreen resolution | 2048 x 2048 | Pixel resolution | 1366 x 768 |
| Display size | 18.5 inch | Aspect ratio | 4:3 |
| Display type | Colour TFT LCD | Display Resolution | 1366 x 768 pixels FWXGA |
| Display colour | 16 million colours | Backlight lifespan | 50000 hours |
| Touch panel | Multi-touch projected capactive technology (PCT) 50000000 cycles | Function Available | Brightness sensor |
| Type of cooling | Natural convection | Type of Installation | Indoor installation |
| cut-out dimensions | 465 (+ 1/- 0) x 319 (+ 1/- 0) mm | Width | 19.02 in (483 mm) |
| Height | 13.3 in (337 mm) | Depth | 2.7 in (69 mm) |
| Net Weight | 15.0 lb(US) (6.8 kg) | IP degree of protection | Front panel IP66<br />Front panel IP67 |
| NEMA degree of protection | NEMA 4X front panel | Standards | UL 508<br /> ANSI/ISA 12-12-01<br />Class I division 2 CSA C22.2 No 213<br /> CSA C22.2 No 142<br /> IEC 61132-2 |
| Product certifications | RCM<br />CULus<br />CE<br />KC | Ambient air temperature for operation | 32…131 °F (0…55 °C) IEC 61131-2 |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Relative Humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) | Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) IEC 61131-2<br />9.8 m/s² 9…150 Hz) IEC 61131-2 |
| Shock resistance | 147 m/s²IEC 61131-2 | Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
Specifications may be subject to change without notice
