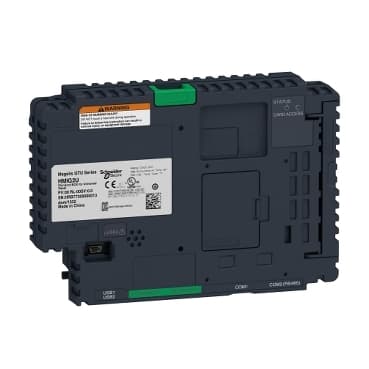

HMIG2U
Product ID:29944
Updated: 2026/4/3
Key Features
- 1Equip with dual serial and dual Ethernet ports for seamless high-level connectivity. 2、Ensure reliable operation in harsh environments with sturdy aluminum housing. 3、Provide unparalleled flexibility through a modular design for various applications. 4、Access data easily via front USB ports with IP66/IP67 protection. 5、Configure effortlessly with powerful yet user-friendly software tools.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony GTU | Product or Component Type | Base unit |
| Device short name | standard box | Range Compatibility | Harmony GTU<br />Allen-Bradley<br />ABB<br />MitsubishI<br />Omron<br />Siemens |
| [Us] rated supply voltage | 12...24 V DC power supply | Integrated connection type | Ethernet TCP/IP 2 RJ45<br />COM1 serial link SUB-D 9 RS232C 2400...115200 bps<br />COM2 serial link RJ45 RS485 187.5 kbps<br />USB 2.0 port 2 USB type A<br />USB 2.0 port mini B USB |
| Communication port protocol | Modbus<br />Modbus TCP/IP<br />Uni-Telway | Operating system | Harmony |
| Software package | Vijeo Designer run time 8000 variables | Processor name | CPU RISC 600 MHz |
| Data storage equipment | 1 GB built-in flash memory | Port Ethernet | 10BASE-T/100BASE-T |
| Memory description | 256 MB RAM internal 2 x 13 mm board)<br />512 KB NVRAM backup memory | Number of slots | 1 slot(s) for SD card |
| Realtime clock | Built-in | Local signalling | , green LED steady)operating status (RUN)<br />, green LED faded)stand-by<br />, orange LED flashing)software starting up<br />, red LED steady)power ON<br />, green, orange and red LED alternate)module error (ERR)<br />, red/orange LED alternate)boot status<br />, green/red LED alternate)connection status |
| Type of cooling | Natural convection | Width | 7.4 in (188 mm) |
| Height | 5.2 in (131 mm) | Depth | 1.8 in (45 mm) |
| Net Weight | 2.0 lb(US) (0.9 kg) | Standards | CSA C22.2 No 142<br /> ANSI/ISA 12-12-01<br /> UL 508<br />Class I division 2 CSA C22.2 No 213<br /> IEC 61132-2 |
| Product certifications | CE<br />CULus<br />ATEX<br />IEC-Ex<br />RCM<br />GL<br />KC<br />CUL<br />EAC<br />UKCA<br />UKEX | Resistance to fast transients | 1 kV IEC 61000-4-4 signal ports)<br />2 kV IEC 61000-4-4 power ports) |
| Resistance to electrostatic discharge | 6 kV contact discharge IEC 61000-4-2 level 3<br />8 kV air discharge IEC 61000-4-2 level 3 | Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Pollution degree | 2 IEC 61131-2 ed.3 |
| Environmental characteristic | Corrosive gas free | Relative Humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) | Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2<br />9.8 m/s² 9…150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2 |
| Shock resistance | 147 m/s² X, Y, Z directions for 3 times)IEC 61131-2 | Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
Specifications may be subject to change without notice
