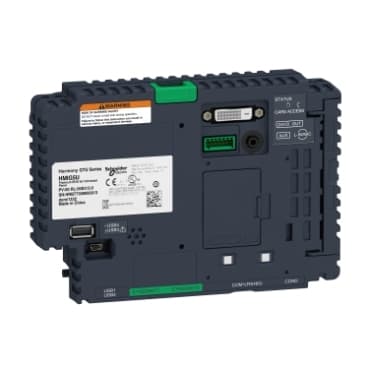

HMIG5U
Product ID:29949
Updated: 2026/4/3
Key Features
- 1Utilize an Intel X86 1.3 GHz CPU for high-performance industrial processing. 2、Access 2 GB RAM and 16 GB CFast storage for seamless data operations. 3、Run on a reliable Windows Embedded 7 OS for secure applications. 4、Connect via Ethernet, USB 2.0, and serial links for versatile integration. 5、Ensure safety with IEC, UL, and CSA certifications for hazardous locations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony GTU | Product or Component Type | Base unit |
| Device short name | Open Box | Range Compatibility | Harmony GTU |
| [Us] rated supply voltage | 12...24 V DC power supply | Integrated connection type | Ethernet TCP/IP 2 RJ45<br />COM1 serial link RJ45 RS485 110...115200 bit/s<br />COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s<br />Auxiliary port terminal block<br />Expansion unit fieldbus card<br />USB 2.0 port mini B USB<br />DVI-D video port DVI-D<br />Microphone mini-jack<br />USB 2.0 port 3 USB type A |
| Operating system | Windows Embedded 7 | Software package | Internet Explorer<br />Vijeo Citect web client<br />Vijeo Designer run time<br />.NET framework 4.0<br />Adobe PDF reader<br />CAD viewer<br />Multimedia player<br />Office reader<br />VNC client/server |
| Processor name | Intel X86 1.3 GHz | Data storage equipment | 16 GB CFast card |
| Port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T | Memory description | 512 KB NVRAM backup memory<br />2 GB RAM internal |
| Width | 7.4 in (188 mm) | Height | 5.2 in (131 mm) |
| Net Weight | 2.0 lb(US) (0.9 kg) | Standards | CSA C22.2 No 142<br /> ANSI/ISA 12-12-01<br /> UL 508<br />Class I division 2 CSA C22.2 No 213<br /> IEC 61132-2 |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) | Ambient air temperature for storage | -4…140 °F (-20…60 °C) |
| Pollution degree | 2 EN 61131-2 Ed.3 | Relative Humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) | Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) EN/IEC 61131-2<br />9.8 m/s² 9…150 Hz) EN/IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test conforming to EN/IEC 61000-4-2 level 3 |
Specifications may be subject to change without notice
