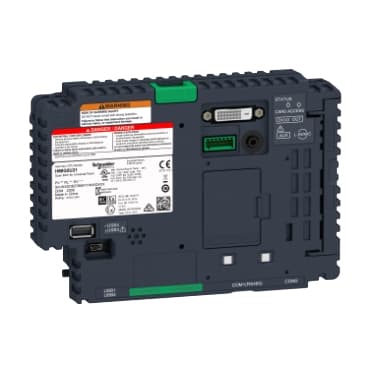

HMIG5U21
Product ID:29951
Updated: 2026/7/14
Key Features
- 1Integrate easily into various systems with unparalleled modular flexibility.
- 2Withstand extreme temperatures and harsh industrial conditions reliably.
- 3Configure quickly and optimize performance using powerful software.
- 4Monitor and control operations remotely via Ethernet or WiFi connectivity.
- 5Enhance HMI functionality with support for USB-connected accessories.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony GTU | Product or Component Type | Base unit |
| Device short name | Open Box | Range Compatibility | Harmony GTU |
| [Us] rated supply voltage | 12...24 V DC power supply | Integrated connection type | Ethernet TCP/IP 2 RJ45<br />COM1 serial link RJ45 RS485 110...115200 bit/s<br />COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s<br />Auxiliary port terminal block<br />USB 2.0 port mini B USB<br />DVI-D video port DVI-D<br />Microphone mini-jack<br />USB 2.0 port 3 USB type A |
| Communication port protocol | Modbus<br />Modbus TCP/IP<br />Uni-Telway | Operating system | Windows 10 IoT Enterprise 32bit |
| Software package | Internet Explorer<br />.NET framework 4.0<br />Multimedia player | Processor name | Intel X86 1.33 GHz |
| Data storage equipment | 32 GB CFast card | Port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
| Memory description | 512 KB NVRAM backup memory<br />4 GB RAM internal | Number of slots | 1 slot(s) for SD card<br />2 slot(s) for Cfast card |
| Realtime clock | Built-in | Local signalling | , multi-colour LEDstatus |
| Type of cooling | Natural convection | Width | 7.4 in (188 mm) |
| Height | 5.2 in (131 mm) | Depth | 1.8 in (45 mm) |
| Net Weight | 2.0 lb(US) (0.9 kg) | Standards | CSA C22.2 No 142<br /> ANSI/ISA 12-12-01<br /> UL 508<br />Class I division 2 CSA C22.2 No 213<br /> IEC 61132-2 |
| Product certifications | CE<br />CULus<br />ATEX<br />IEC-Ex<br />RCM<br />DNV-GL<br />KC<br />CUL<br />EAC<br />UKCA<br />UKEX | Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Pollution degree | 2 EN 61131-2 Ed.3 |
| Relative Humidity | 10…90 % non-condensing | Vibration resistance | 9.8 m/s² 9…150 Hz) EN/IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2 |
Specifications may be subject to change without notice
