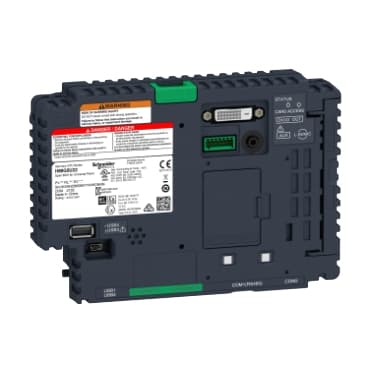

HMIG5U22
Product ID:29952
Updated: 2026/4/3
Key Features
- 1Adopt a modular design for unparalleled system flexibility and future upgrades. 2、Withstand harsh industrial environments with a robust, durable construction. 3、Configure and deploy easily using powerful, intuitive software tools. 4、Enhance HMI functionality by connecting various USB accessories and peripherals. 5、Enable seamless remote operation via integrated Ethernet or optional WiFi connectivity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony GTU | Product or Component Type | Base unit |
| Device short name | Open Box | Range Compatibility | Harmony GTU |
| [Us] rated supply voltage | 12...24 V DC power supply | Integrated connection type | Ethernet TCP/IP 2 RJ45<br />COM1 serial link RJ45 RS485 2400...115200 bps<br />COM2 serial link SUB-D 9 RS232C/RS422/RS485 2400...115200 bps<br />Auxiliary port terminal block<br />USB 2.0 port mini B USB<br />DVI-D video port DVI-D<br />Microphone mini-jack<br />USB 2.0 port 3 USB type A |
| Communication port protocol | Modbus<br />Modbus TCP/IP<br />Uni-Telway | Operating system | Windows 10 IoT Enterprise 32bit |
| Software package | Vijeo Designer run time<br />EcoStruxure Operator Terminal Expert run time<br />Internet Explorer<br />.NET framework 4.0<br />Multimedia player | Processor name | Intel X86 1.33 GHz |
| Data storage equipment | 32 GB CFast card | Port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
| Memory description | 512 KB NVRAM backup memory<br />4 GB RAM internal | Number of slots | 1 slot(s) for SD card<br />2 slot(s) for Cfast card |
| Realtime clock | Built-in | Local signalling | , multi-colour LEDstatus |
| Type of cooling | Natural convection | Width | 7.4 in (188 mm) |
| Height | 5.2 in (131 mm) | Depth | 1.8 in (45 mm) |
| Net Weight | 2.0 lb(US) (0.9 kg) | Standards | CSA C22.2 No 142<br /> ANSI/ISA 12-12-01<br /> UL 508<br />Class I division 2 CSA C22.2 No 213<br /> IEC 61132-2 |
| Product certifications | CE<br />CULus<br />ATEX<br />IEC-Ex<br />RCM<br />DNV-GL<br />KC<br />CUL<br />EAC<br />UKCA<br />UKEX | Ambient air temperature for operation | 32…140 °F (0…60 °C) |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Pollution degree | 2 IEC 61131-2 ed.3 |
| Relative Humidity | 10…90 % non-condensing | Operating altitude | 2000 |
| Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) IEC 61131-2<br />9.8 m/s² 9…150 Hz) IEC 61131-2 | Shock resistance | 147 m/s²IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
Specifications may be subject to change without notice
