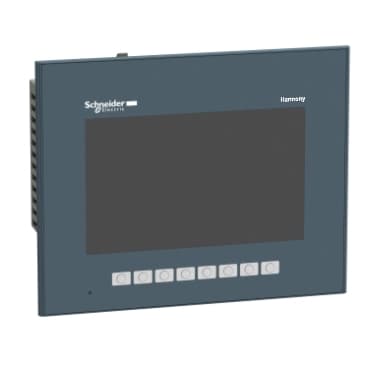

HMIGTO3510FC
Product ID:29975
Updated: 2026/4/3
Key Features
- 1Feature a 7-inch WVGA TFT display with 65K colors and LED backlight for clear visibility. 2、Integrate seamlessly with 2 Ethernet, 2 USB, and multiple COM ports for robust connectivity. 3、Configure easily using Vijeo Designer software for efficient operation setup. 4、Ensure reliability in demanding applications with flush mount and UL 508 certification. 5、Support Modbus, TCP/IP, and other protocols for comprehensive system integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony GTO | Product or Component Type | Advanced touchscreen panel |
| Display colour | 65536 colours | Display size | 7 inch |
| Supply | External source | Control Button Type | 8 operation defined using Vijeo Designer push-button key F1...F8 |
| Battery type | Lithium internal RAM 100 days 5 day(s) 10 year(s) | Terminal type | Touchscreen display |
| Display Type | Backlit colour TFT LCD | Display Resolution | 800 x 480 pixels WVGA |
| Touch sensitive zone | 1024 x 1024 | Touch panel | Resistive film, 1000000 cycles |
| Backlight lifespan | 50000 hours white 77 °F (25 °C) | Brightness | 16 levels by touch panel<br />16 levels by software |
| Character font | Japanese (ANK, Kanji)<br />Taiwanese (traditional Chinese)<br />Korean<br />ASCII<br />Chinese (simplified Chinese) | [Us] rated supply voltage | 24 V DC |
| Supply voltage limits | 19.2…28.8 V | Inrush current | 30 A |
| Maximum power consumption in W | 8 W when power is not supplied to external devices<br />5 W when backlight is OFF<br />5.5 W when backlight is dimmed<br />12 W | Local signalling | Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED clear, faded power supply (OFF)<br />COM2 LED yellow, steady data is being transmitted<br />COM2 LED yellow, faded no data transmission<br />SD card LED green, steady card is inserted<br />SD card LED green, faded card is not inserted or is not being accessed |
| Software designation | Vijeo Designer configuration software >= V6.1 | Memory description | Flash EPROM, 96 MB |
| Data backed up | 128 kB internal RAM SRAM) | Data storage equipment | SD card, <= 32 GB<br />SDHC card, <= 32 GB |
| Downloadable protocols | Schneider Electric Modicon Modbus<br />Schneider Electric Modicon Uni-TE<br />Schneider Electric Modicon Modbus Plus<br />Schneider Electric Modicon FIPWAY<br />Mitsubishi Melsec third party protocols<br />Omron Sysmac third party protocols<br />Rockwell Automation Allen-Bradley third party protocols<br />Siemens Simatic third party protocols<br />Schneider Electric Modicon Modbus TCP | Integrated connection type | COM1 serial link SUB-D 9 RS232C 2400...115200 bps<br />COM2 serial link RJ45 RS485 2400...115200 bps<br />COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI<br />Ethernet RJ45 10BASE-T/100BASE-TX<br />Ethernet RJ45 IEEE 802.3<br />USB 2.0 type A<br />USB 2.0 type mini B |
| Product mounting | Flush mounting | Fixing mode | by 4 screw clamps |
| Front material | PPT | Enclosure Material | PPT |
| Type of cooling | Natural convection | Width | 8.6 in (218 mm) |
| Height | 6.8 in (173 mm) | Depth | 2.4 in (60 mm) |
| Net Weight | 2.6 lb(US) (1.2 kg) | Standards | UL 508<br />EN 61131-2<br />IEC 61000-6-2 |
| Product Certifications | cULus<br />C-tick<br />CE<br />KCC<br />UKCA<br />UKEX | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Relative humidity | 10…90 % without condensation |
| Operating altitude | < 6561.68 ft (2000 m) | IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) |
| NEMA degree of protection | NEMA 4X front panel (indoor use) | Shock resistance | 147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2 |
| Vibration resistance | 3.5 mm 5…9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2<br />1 gn 9…150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 | Resistance to electrostatic discharge | 6 kV contact discharge IEC 61000-4-2 level 3 |
Specifications may be subject to change without notice
