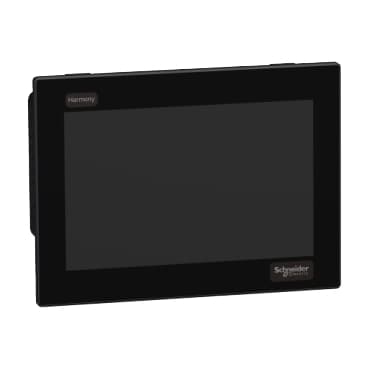

HMIP6ADB0NA0DNAN00
Product ID:30041
Updated: 2026/4/3
Key Features
- 1Utilize an Intel Atom 2-core processor for efficient performance. 2、View data on a 10" LED display with high resolution. 3、Run applications on Windows 10 IoT Enterprise 64-bit. 4、Deploy in harsh conditions with IP20, IP66F, IP67F, and Type 4X protection. 5、Expand and maintain easily with a modular design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony P6 | Product or Component Type | Modular box PC<br />Touch panel screen |
| Device short name | HMIP6A | Operating system | Windows 10 IoT Enterprise 64 bitmulti-language |
| Software package | Node-RED preinstalled<br />EcoStruxure Machine SCADA Expert run time (on configured offer)<br />EcoStruxure Operator Terminal Expert run time (on configured offer)<br />AVEVA system platform installer (on configured offer)<br />EcoStruxure secure connect (license to be purchased seperately)<br />Stratus EverRun (exchange partner) (license to be purchased seperately)<br />Trellix (license to be purchased seperately) | Video controller type | Intel UHD Graphics for 10th Gen |
| Display size | 10.1 inch | Aspect ratio | 16:9 |
| Display Type | LED | Display Resolution | 4096 x 2304 pixels |
| Display colour | 16 million colours | Pixel resolution | 1280 x 800 |
| Backlight lifespan | 50000 hours at 77 °F (25 °C) | Number of slots | 1 slot(s) for optional interface |
| [Us] rated supply voltage | 12...24 V DC power supply | Supply voltage limits | 9…36 V |
| Power consumption in W | 47 W<br />56 W | Inrush current | 30 A |
| Type of cooling | Fanless | Device mounting | Panel mounting<br /> VESA mounting |
| cut-out dimensions | 255 (+ 1/- 0) x 185 (+ 1/- 0) mm | Width | 10.6 in (268.5 mm) |
| Depth | 2.6 in (67 mm) | Height | 7.8 in (198.5 mm) |
| Net Weight | 8.2 lb(US) (3.7 kg) | Standards | EN/IEC 61000-4-2<br />IEC 61000-4-4<br />FCC part 15<br />UL 61010-2-201 |
| Product certifications | CE<br />CULus<br />CSA<br />UL 61010-2-201<br />RCM<br />UKCA | IP degree of protection | IP20 conforming to IEC 61131-2<br />IP66f<br />IP67f |
| NEMA degree of protection | NEMA 4X/13 | Ambient air temperature for operation | 32…131 °F (0…55 °C) wall mounting side<br />32…131 °F (0…55 °C) panel side<br />32…131 °F (0…55 °C) book mounting side<br />32…131 °F (0…55 °C) flat mounting top<br />32…131 °F (0…55 °C) panel top<br />32…122 °F (0…50 °C) panel with 19" W, 22" W display) side |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Relative humidity | 10…90 % non-condensing |
| Pollution degree | 2 | Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | 9.8 m/s² 9…150 Hz) - M.2 SSD - IEC 61131-2 | Shock resistance | 147 m/s² X, Y, Z directions for 3 times |
| Electromagnetic compatibility | Electrostatic discharge immunity test 6 kV contact discharge IEC 61000-4-2 level 3 | Display resolution | 4096 x 2304 pixels at 60 Hz |
| Integrated connection type | Display port 1 DP bottom DP++<br />Ethernet 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T 10/100/1000 Mbps bottom IEEE 1588 supported<br />COM serial link 2 plug SUB-D 9 RS232C/RS422/RS485 2400...115200 bps bottom non-isolated<br />USB 3.1 port 2 USB type A 5 Gbit/s bottom<br />USB 3.0 port 1 USB type C 5 Gbit/s bottom<br />TPM (Trusted Platform Module version 2) cyber security - hardware encryption TPM module by default motherboard | Processor name | Intel Atom x6211E 1.3 GHz turbo boost at 3.0 GHz |
Specifications may be subject to change without notice
