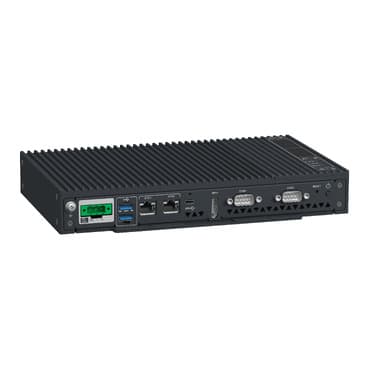

HMIP6DBB0NA0WNAN00
Product ID:30049
Updated: 2026/4/3
Key Features
- 1Utilize the Intel Atom x6425E processor for efficient 4-core performance. 2、Access 8 GB RAM and 128 GB storage for demanding industrial tasks. 3、Run on the reliable and secure Windows 10 operating system. 4、Connect via robust options including 2x Ethernet and 2x COM ports. 5、Deploy with industrial-grade durability featuring IP20 protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony P6 | Product or Component Type | Modular box PC |
| Operating system | Windows 10 IoT Enterprise 64 bitmulti-language | Software package | Node-RED preinstalled<br />EcoStruxure Machine SCADA Expert run time (on configured offer)<br />EcoStruxure Operator Terminal Expert run time (on configured offer)<br />AVEVA system platform installer (on configured offer)<br />EcoStruxure secure connect (license to be purchased seperately)<br />Stratus EverRun (exchange partner) (license to be purchased seperately)<br />Trellix (license to be purchased seperately) |
| Video controller type | Intel UHD Graphics for 10th Gen | Backlight lifespan | 50000 hours at 77 °F (25 °C) |
| Number of slots | 1 slot(s) for optional interface | [Us] rated supply voltage | 12...24 V DC power supply |
| Supply voltage limits | 9…36 V | Power consumption in W | 45 W |
| Inrush current | 30 A | Type of cooling | Fanless |
| Device mounting | Panel mounting | Width | 9.8 in (250 mm) |
| Depth | 1.5 in (37 mm) | Height | 6.5 in (165 mm) |
| Net Weight | 3.7 lb(US) (1.7 kg) | Standards | EN/IEC 61000-4-2<br />IEC 61000-4-4<br />FCC part 15<br />UL 61010-2-201 |
| Product certifications | CE<br />CULus<br />CSA<br />UL 61010-2-201<br />RCM<br />UKCA | IP degree of protection | IP20 conforming to IEC 61131-2<br />IP66f<br />IP67f |
| NEMA degree of protection | NEMA 4X/13 | Ambient air temperature for operation | 32…131 °F (0…55 °C) wall mounting side<br />32…131 °F (0…55 °C) book mounting side<br />32…131 °F (0…55 °C) flat mounting top<br />32…131 °F (0…55 °C) panel top<br />32…122 °F (0…50 °C) panel with 19" W, 22" W display) side |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Relative humidity | 10…90 % non-condensing |
| Pollution degree | 2 | Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | 9.8 m/s² 9…150 Hz) - M.2 SSD - IEC 61131-2 | Shock resistance | 147 m/s² X, Y, Z directions for 3 times |
| Electromagnetic compatibility | Electrostatic discharge immunity test 6 kV contact discharge IEC 61000-4-2 level 3 | Display resolution | 4096 x 2304 pixels at 60 Hz<br /> at 60 Hz |
| Integrated connection type | Display port 1 DP bottom DP++<br />Ethernet 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T 10/100/1000 Mbps bottom IEEE 1588 supported<br />COM serial link 2 plug SUB-D 9 RS232C/RS422/RS485 2400...115200 bps bottom non-isolated<br />USB 3.1 port 2 USB type A 5 Gbit/s bottom<br />USB 3.0 port 1 USB type C 5 Gbit/s bottom<br />TPM (Trusted Platform Module version 2) cyber security - hardware encryption TPM module by default motherboard | Processor name | Intel Atom x6425E 2.0 GHz turbo boost at 3.0 GHz |
Specifications may be subject to change without notice
