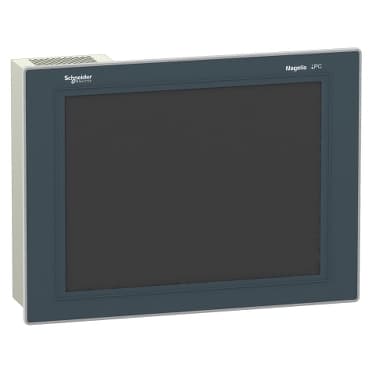

HMIPPF7D0701
Product ID:30190
Updated: 2026/4/3
Key Features
- 1Deploy a high-performance 15-inch panel PC for industrial use. 2、Operate reliably with DC power compatibility in various settings. 3、Simplify your setup with zero expansion slots required. 4、Ensure stable performance with integrated fan cooling. 5、Rely on Schneider Electric's quality and durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony iPC | Product or Component Type | PC panel |
| Processor name | Core 2 Duo P8400 2.26 GHz cache 6 MB | Chipset type | Intel GM45 1.066 GHz |
| Display size | 15 inch | Display colour | 16 million colours |
| Luminance | 32.5 fc (350 cd/m²) | Video controller type | Intel Graphics Media Accelerator (GMA) 4500MHD, 384 MB |
| Operating system | Windows 7 64 bits Ultimatemulti-language | Software package | Vijeo Designer run time demo |
| Bezel material | Aluminium alloy | Terminal type | Touchscreen display |
| Data storage equipment | >= 60 GB Flash disk SSD MLC 2000000 h | Display Type | Active matrix colour TFT LCD with LED backlight |
| Display Resolution | 1024 x 768 pixels XGA | View angle horizontal x vertical | 160 x 100° |
| Touch panel | Analogue resistive | Memory type | 512 KB SRAM<br />4 GB RAM DDR3 |
| Type of cooling | Fan | Integrated connection type | 2 Ethernet TCP/IP - RJ45<br /> DVI-I video port - DVI-I<br /> COM1 serial link - male SUB-D 9 - RS232C 115 kbit/s)<br /> COM2 serial link - male SUB-D 9 - RS232C 115 kbit/s)<br /> USB 2.0 type A 480 Mbit/s)front panel<br />4 USB 2.0 type A 480 Mbit/s)top panel |
| Port Ethernet | 10BASE-T/100BASE-T/1000BASE-T | [Us] rated supply voltage | 24 V DC power supply |
| Supply voltage limits | 18…30 V | Line Rated Current | 6.7 A |
| Inrush current | 7 A | Power consumption in W | 130 W |
| Material | Treated steel | Display material | Polyethylene sheet |
| Fixing mode | Enclosure door by fixing kit fasteners included)<br />Panel by fixing kit fasteners included) | Type of Installation | Indoor |
| Control type | ON/OFF push-button equipment ON and OFF)<br />Push-button reset) | Local signalling | for power LED (multi-colour)<br /> for accessing Flash disk SSD (DISK) LED (yellow) |
| Width | 15.8 in (402 mm) | Height | 11.9 in (301 mm) |
| Depth | 4.6 in (118 mm) | cut-out dimensions | 383.5 (+ 1/- 0) x 282.5 (+ 1/- 0) x 1.6...10 mm |
| Net Weight | 22.07 lb(US) (10.01 kg) | Main type | Performance |
| IP degree of protection | IP65 front panel: conforming to EN/IEC 60529 | NEMA degree of protection | NEMA 4X front panel |
| Product certifications | CULus 508<br />CULus CSA 22-2 No 142<br />CULus HazLoc Class I Division 2 UL 1604<br />CULus HazLoc Class I Division 2 ANSI/ISA 12-12-01<br />CULus HazLoc Class I Division 2 CSA 22-2 No 213<br />GOST<br />CE<br />C-tick | Pollution degree | 2 EN/IEC 61131-2 |
| Electromagnetic compatibility | Immunity to electromagnetic emissions, class A EN 55022<br />Immunity to electromagnetic emissions, class A EN 55011<br />Immunity to high frequency interference EN/IEC 61131-2<br />Immunity to high frequency interference EN/IEC 61000-4-x | Ambient air temperature for operation | 32…122 °F (0…50 °C) vertical installation UL 508<br />32…122 °F (0…50 °C) vertical installation EN/IEC 61131-2 |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) IEC 60068-2-2 test Bb<br />-4…140 °F (-20…60 °C) IEC 60068-2-14 test Na | Relative Humidity | 10…85 % EN/IEC 60068-2-78<br />10…85 % EN/IEC 60068-2-30 |
| Operating altitude | 6561.68 ft (2000 m) EN/IEC 61131-2 | Vibration resistance | 1.75 mm 2…9 Hz) continuous EN/IEC 60068-2-6 Fc<br />3.5 mm 2…9 Hz) intermittently EN/IEC 60068-2-6 Fc<br />0.5 gn 9…200 Hz) continuous EN/IEC 60068-2-6 Fc<br />1 gn 9…200 Hz) intermittently EN/IEC 60068-2-6 Fc<br />1 mm 3…13.2 Hz) continuous EN/IEC 60068-2-6 Fc<br />0.7 gn 13.2…100 Hz) continuous EN/IEC 60068-2-6 Fc |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27, Ea tests |
Specifications may be subject to change without notice
