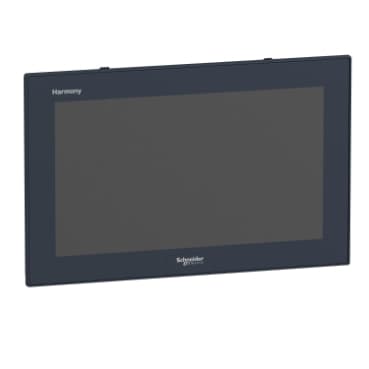

HMIPSOS752D1801
Product ID:30212
Updated: 2026/4/3
Key Features
- 1Operate a 15.6-inch multi-touch TFT LCD with 16.7M colors. 2、Integrate seamlessly with Harmony iPC systems for high performance. 3、Utilize an optimized SSD W15 DC for reliable data storage. 4、Run Windows 10 IoT Enterprise 64-bit for security. 5、Withstand harsh environments with IP66 front panel protection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony iPC | Product or Component Type | Multi-touch screen |
| Processor Name | Intel Atom E3827 dual core at 1.75 GHz | Chipset type | Intel Atom SoC |
| Free slots | 1 Internal SATA HDD/SSD<br />1 CFast | Display size | 15" wide multi-touch |
| Display colour | 16777216 colors | Luminance | 27.9 fc (300 cd/m²) |
| Pixel resolution | 4096 x 4096 | Video controller type | Intel HD Graphics |
| Operating system | Windows 10 IoT Enterprise 64 bitmulti-language | Software package | EcoStruxture secure connect advisor annual subscription cyber security license not included<br />EcoStruxure Operator Terminal Expert run time HMI license not included<br />EcoStruxure Machine SCADA Expert run time HMI/SCADA on configured offer only<br />EcoStruxure augmented operator advisor server augmented operator license not included |
| Number of points | 5 | Terminal type | Touchscreen display |
| Memory type | 4 GB RAM DDR3 internal | Data storage equipment | 128 GB extension back side SSD 1500000 h |
| Aspect ratio | 16:9 | Display Type | LED<br />Colour TFT LCD |
| Display Resolution | 1366 x 768 pixels WXGA | Backlight lifespan | 50000 hours |
| View angle horizontal x vertical | 150 x 140° | Touch panel | Projected capacitive technology (PCT) |
| Type of cooling | Passive<br />Fanless | Watchdog timer | 1…255 ms |
| Number of slots | 1 mini PCI Express full-size | [Us] rated supply voltage | 24 V DC +/- 20 %<br />100...240 V AC with additional adaptor HMIYPSOMAC1 |
| Line Rated Current | 1.7 A | Mechanical robustness | Hardness anti-scratch 7H |
| Local signalling | buzzer<br /> for on LED (green)<br /> for stand-by LED (orange) | Function Available | Operate with water on screen |
| Width | 16.5 in (419.7 mm) | Height | 10.6 in (269 mm) |
| Depth | 3.4 in (86 mm) | cut-out dimensions | 412.4 (+/- 0.7) x 261.7 (+/- 0.4) |
| Net Weight | 8.6 lb(US) (3.9 kg) | Main type | Optimised |
| IP degree of protection | IP66 front panel: | Product Certifications | CE<br />C-tick<br />AS/NZS<br />RCM<br />CCC<br />EAC |
| Standards | CSA C22.2 No. 60950<br />IEC 61000-6-2<br />CISPR 11<br />UL 60950<br />IEC 61000-6-4<br />FCC Part 15 class A<br />IEC 60950 | Directives | 2004/108/EC - electromagnetic compatibility<br />2006/95/EC - low voltage directive |
| Pollution degree | 2 | Ambient air temperature for operation | 32…131 °F (0…55 °C) SSD<br />32…131 °F (0…55 °C) Cfast card<br />32…113 °F (0…45 °C) HDD<br />32…113 °F (0…45 °C) Mini PCIe |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Relative Humidity | 10…95 % non-condensing |
| Operating altitude | 2000 | Vibration resistance | 1 gn 5…500 Hz)HDD<br />2 gn 5…500 Hz)SSD<br />2 gn 5…500 Hz)Cfast card |
Specifications may be subject to change without notice
