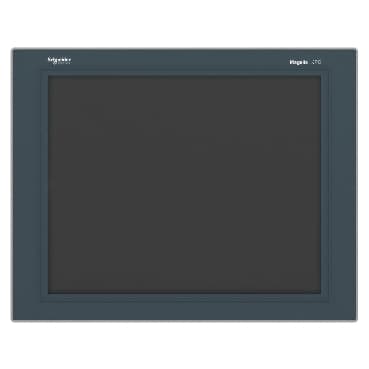

HMIPUC9D0E01
Product ID:30230
Updated: 2026/4/3
Key Features
- 1Utilize a compact 19-inch display for efficient industrial space use. 2、Power operations with a reliable 1.66 GHz Intel Atom N270 processor. 3、Ensure quiet and maintenance-free fanless operation in control rooms. 4、Protect against harsh conditions with robust IP65 dust and water resistance. 5、Integrate seamlessly into IT structures using Windows Embedded Standard WES2009.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony iPC | Product or Component Type | PC panel |
| Processor name | Atom N270 1.66 GHz L2 cache 512 KB | Chipset type | Intel 945GME 533 MHz |
| Display size | 19 inch | Display colour | 16 million colours |
| Luminance | 27.9 fc (300 cd/m²) | Video controller type | Intel Graphics Media Accelerator (GMA) 950, 224 MB |
| Operating system | Windows Embedded Standard WES2009English<br />Windows Embedded Standard WES2009French<br />Windows Embedded Standard WES2009German<br />Windows Embedded Standard WES2009Italian<br />Windows Embedded Standard WES2009Spanish<br />Windows Embedded Standard WES2009Swedish<br />Windows Embedded Standard WES2009Chinese<br />Windows Embedded Standard WES2009Portuguese<br />Windows Embedded Standard WES2009Russian | Software package | Vijeo Designer run time demo<br />.NET Framework 3.5<br />Acrobat Reader<br />Internet Explorer<br />Viewer Word/Excel/Power Point<br />Vijeo Citect web client |
| Bezel material | Aluminium alloy | Terminal type | Touchscreen display |
| Data storage equipment | 4 GB Compact Flash card | Display Type | Active matrix colour TFT LCD with LED backlight |
| Display Resolution | 1280 x 1024 pixels SXGA | View angle horizontal x vertical | 160 x 100° |
| Touch panel | Analogue resistive | Memory type | 512 KB SRAM<br />2 GB RAM DDR3 |
| Type of cooling | Fanless | Integrated connection type | 2 Ethernet TCP/IP - RJ45<br /> DVI-I video port - DVI-I<br /> COM1 serial link - male SUB-D 9 - RS232C 115 kbit/s)<br /> COM2 serial link - male SUB-D 9 - RS232C 115 kbit/s)<br /> USB 2.0 type A 480 Mbit/s)front panel<br />4 USB 2.0 type A 480 Mbit/s)top panel |
| Port Ethernet | 10BASE-T/100BASE-T/1000BASE-T | [Us] rated supply voltage | 24 V DC power supply |
| Supply voltage limits | 18…30 V | Line Rated Current | 6.7 A |
| Inrush current | 7 A | Power consumption in W | 130 W |
| Material | Treated steel | Display material | Polyethylene sheet |
| Fixing mode | Enclosure door by fixing kit fasteners included)<br />Panel by fixing kit fasteners included) | Type of Installation | Indoor |
| Control type | ON/OFF push-button equipment ON and OFF)<br />Push-button reset) | Local signalling | for power LED (multi-colour)<br /> for accessing Compact Flash card (HDD) LED (yellow) |
| Width | 18.9 in (480 mm) | Height | 15.0 in (380 mm) |
| Depth | 4.5 in (114 mm) | cut-out dimensions | 459.5 (+/- 0.5) x 359.5 (+/- 0.5) x 1.6...10 mm |
| Net Weight | 29.92 lb(US) (13.57 kg) | Main type | Universal |
| IP degree of protection | IP65 front panel: conforming to EN/IEC 60529 | NEMA degree of protection | NEMA 4X front panel |
| Product certifications | Marine GL Bridge with line filter HMIYLFIMAR11<br />CULus 508<br />CULus CSA 22-2 No 142<br />CULus HazLoc Class I Division 2 UL 1604<br />CULus HazLoc Class I Division 2 ANSI/ISA 12-12-01<br />CULus HazLoc Class I Division 2 CSA 22-2 No 213<br />GOST<br />CE<br />C-tick | Pollution degree | 2 EN/IEC 61131-2 |
| Electromagnetic compatibility | Immunity to electromagnetic emissions, class A EN 55022<br />Immunity to electromagnetic emissions, class A EN 55011<br />Immunity to high frequency interference EN/IEC 61131-2<br />Immunity to high frequency interference EN/IEC 61000-4-x | Ambient air temperature for operation | 32…122 °F (0…50 °C) vertical installation UL 508<br />32…122 °F (0…50 °C) vertical installation EN/IEC 61131-2 |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) IEC 60068-2-2 test Bb<br />-4…140 °F (-20…60 °C) IEC 60068-2-14 test Na | Relative Humidity | 10…85 % EN/IEC 60068-2-78<br />10…85 % EN/IEC 60068-2-30 |
| Operating altitude | 6561.68 ft (2000 m) EN/IEC 61131-2 | Vibration resistance | 1.75 mm 2…9 Hz) continuous EN/IEC 60068-2-6 Fc<br />3.5 mm 2…9 Hz) intermittently EN/IEC 60068-2-6 Fc<br />0.5 gn 9…200 Hz) continuous EN/IEC 60068-2-6 Fc<br />1 gn 9…200 Hz) intermittently EN/IEC 60068-2-6 Fc<br />1 mm 3…13.2 Hz) continuous EN/IEC 60068-2-6 Fc<br />0.7 gn 13.2…100 Hz) continuous EN/IEC 60068-2-6 Fc |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27, Ea tests |
