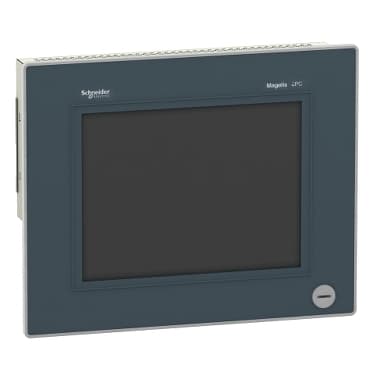

HMIPWC5D0E01
Product ID:30253
Updated: 2026/4/3
Key Features
- 1Utilize a compact 10'' TFT color touchscreen display. 2、Implement enhanced cybersecurity from application to firmware. 3、Configure easily with Vijeo Designer software. 4、Connect via integrated USB ports for data transfer. 5、Deploy with IP65 and NEMA 4X indoor certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony iPC | Product or Component Type | PC panel |
| Terminal type | Touchscreen display | Processor name | Atom Z510 1.1 GHz cache |
| Chipset type | Intel US15W 400 MHz | Data storage equipment | Compact Flash card 2 GB SLC |
| Number of slots available for expansion | 1 Compact Flash card<br />1 SD card | Display size | 10.4 inch |
| Display Type | Active matrix colour TFT LCD with LED backlight | Display Resolution | 800 x 600 pixels SVGA |
| Display colour | 16 million colours | Luminance | 41.8 fc (450 cd/m²) |
| View angle horizontal x vertical | 160 x 120° | Touch panel | Analogue resistive |
| Memory Type | 1 GB RAM DDR2<br />512 KB SRAM | Video controller type | Intel Graphics Media Accelerator (GMA) 500, 256 MB |
| Integrated connection type | 2 Ethernet TCP/IP - RJ45 10BASE-T/100BASE-T/1000BASE-T<br />COM1 serial link - male SUB-D 9 - RS232C - 115 kbauds<br />USB 2.0 port - USB type A - 480 Mbit/s front panel<br />2 USB 2.0 port - USB type A - 480 Mbit/s top | Operating system | Windows Embedded Standard WES2009 - English<br />Windows Embedded Standard WES2009 - French<br />Windows Embedded Standard WES2009 - German<br />Windows Embedded Standard WES2009 - Italian<br />Windows Embedded Standard WES2009 - Spanish<br />Windows Embedded Standard WES2009 - Swedish<br />Windows Embedded Standard WES2009 - Chinese<br />Windows Embedded Standard WES2009 - Portuguese<br />Windows Embedded Standard WES2009 - Russian |
| Software package | .NET Framework 3.5<br />Internet Explorer<br />Vijeo Designer run time demo<br />Adobe PDF and multimedia reader<br />Vijeo Citect web client<br />Viewer Word/Excel/Power Point | [Us] rated supply voltage | 24 V DC power supply) |
| Supply voltage limits | 18…30 V | Line Rated Current | 1.875 A |
| Inrush current | 3 A | Power consumption in W | 36 W |
| Bezel material | Aluminium alloy | Enclosure Material | Treated steel |
| Display material | Polyethylene sheet | Fixing mode | Enclosure door by fixing kit fasteners included)<br />Panel by fixing kit fasteners included) |
| Control type | ON/OFF push-button equipment ON and OFF)<br />Push-button reset) | Local signalling | Accessing CF system card (DISK) LED Yellow)<br />Power multi-colour LED -) |
| Width | 12.7 in (323 mm) | Height | 10.2 in (260 mm) |
| Depth | 2.8 in (72 mm) | Net Weight | 9.68 lb(US) (4.39 kg) |
| IP degree of protection | IP65 EN/IEC 61131-2 front panel (indoor use)) | NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Product certifications | CULus 508<br />CULus CSA 22-2 No 142<br />CULus HazLoc Class I Division 2 UL 1604<br />CULus HazLoc Class I Division 2 ANSI/ISA 12-12-01<br />CULus HazLoc Class I Division 2 CSA 22-2 No 213<br />CE<br />C-tick<br />GOST | Pollution degree | 2 EN/IEC 61131-2 |
| Electromagnetic compatibility | Immunity to high frequency interference EN/IEC 61131-2<br />Immunity to high frequency interference EN/IEC 61000-4-x<br />Immunity to electromagnetic emissions EN 55022 Class A<br />Immunity to electromagnetic emissions EN 55011 class A | Ambient air temperature for operation | 32…122 °F (0…50 °C) vertical installation EN/IEC 61131-2<br />32…122 °F (0…50 °C) vertical installation UL 508 |
| Ambient air temperature for storage | -4…140 °F (-20…60 °C) IEC 60068-2-2 test Bb<br />-4…140 °F (-20…60 °C) IEC 60068-2-14 test Na | Relative Humidity | 10…85 % EN/IEC 60068-2-30 Db<br />10…85 % EN/IEC 60068-2-78 |
| Operating altitude | 6561.68 ft (2000 m) EN/IEC 61131-2 | Vibration resistance | 1.75 mm 2…9 Hz) continuous EN/IEC 60068-2-6 Fc<br />3.5 mm 2…9 Hz) intermittently EN/IEC 60068-2-6 Fc<br />0.5 gn 9…200 Hz) continuous EN/IEC 60068-2-6 Fc<br />1 gn 9…200 Hz) intermittently EN/IEC 60068-2-6 Fc<br />1 mm 3…13.2 Hz) continuous EN/IEC 60068-2-6 Fc<br />0.7 gn 13.2…100 Hz) continuous EN/IEC 60068-2-6 Fc |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27, Ea tests |
Specifications may be subject to change without notice
