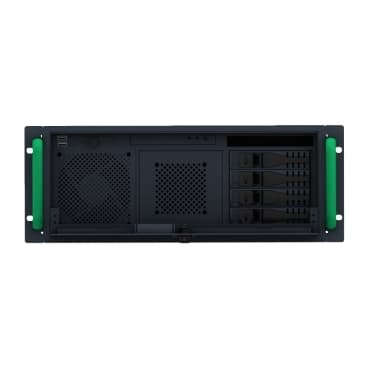

HMIRSPFXA6701
Product ID:30257
Updated: 2026/7/15
Key Features
- 1Power your operations with an Intel Xeon quad-core 3.1 GHz processor.
- 2Enhance data handling with support for up to 32 GB DDR3 RAM.
- 3Ensure reliable storage via an 80 GB internal hot-swap SSD.
- 4Connect multiple devices with VGA, DVI, USB 3.0, and serial ports.
- 5Deploy confidently with a 2-year Schneider Electric industrial warranty.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony iPC | Product or Component Type | Industrial rack PC |
| Device short name | Rack PC 4U Performance | Range Compatibility | IDisplay |
| Processor name | Intel Xeon quad-core 1225 3.1 GHz L3 cache 8 MB | Storage slots | 1 internal slot (SATA3)<br />4 hot swap trays (SATA2) |
| Data storage equipment | 128 GB Internal SSD - hot swap 2000000 h | Memory description | Up to 32 GB RAM DDR3 internal 4<br />4 GB RAM DDR3 internal 1 by default) |
| Number of slots | 3 PCI<br />4 PCI express 16x | Drive type | DVD-RW |
| Video controller type | Intel HD Graphics 2500 | Display Resolution | 2048 x 1536 pixels |
| Watchdog timer | 1…255 ms | Type of cooling | 2 fans with speed control |
| Integrated connection type | 1 VGA<br />1 DVI video port<br />2 USB 3.0 port<br />1 COM1 serial link - male SUB-D 9 - RS232<br />1 audio micro input<br />1 audio line output<br />4 USB 2.0 port<br />4 COM1 serial link (optional) - male SUB-D 9<br />2 Ethernet - RJ45 10/100/1000 Mbit/s) | Switch application | Case open |
| Operating system | Windows 7 64 bits Ultimate - multi-language | Software package | Vijeo XD run time demo run time demo license not included<br />Citect SCADA DVD license not included<br />EcoStruxure Operator Terminal Expert run time demo license not included |
| Motherboard type | ATX | [Us] rated supply voltage | 100...240 V AC power supply |
| Power consumption in W | 500 W | Mounting Support | 19" rack |
| Depth | 23.7 in (601.4 mm) | Height | 6.8 in (172.7 mm) |
| Width | 19.0 in (482 mm) | Net Weight | 45.9 lb(US) (20.8 kg) |
| Product certifications | CCC<br />EAC<br />CULus | Standards | CSA 22-2 No 60950-1-07<br />EN 55011: class A group 1<br />EN 60950-1<br />EN 61000-6-2<br />EN 61000-6-4<br />FCC part 15<br />UL 60950-1 |
| Quality labels | CE | Directives | 2004/108/EC - electromagnetic compatibility<br />2006/95/EC - low voltage directive |
| IP degree of protection | IP40 conforming to IEC 60529 | Ambient air temperature for storage | -4…140 °F (-20…60 °C) IEC 60068-2-2 |
| Relative Humidity | 10…85 % non-condensing IEC 60068-2-78 | Ambient air temperature for operation | 32…104 °F (0…40 °C) IEC 60068-2-2 |
| Vibration resistance | 0.002 g²/Hz 5…500 Hz) operating IEC 60068-2-64<br />2 gn 5…500 Hz) not operating IEC 60068-2-6 | Shock resistance | 10 gn 11 ms IEC 60068-2-27 |
Specifications may be subject to change without notice
