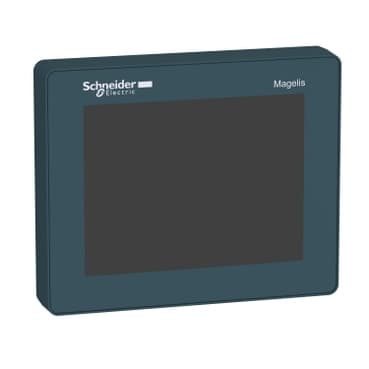

HMIS65
Product ID:30270
Updated: 2026/7/15
Key Features
- 1Integrate easily with compact 97.6mm W x 80mm D dimensions.
- 2Operate intuitively on a 3.5" analog touch panel with 320x240 QVGA resolution.
- 3Ensure reliable performance with a 50,000-hour backlight lifespan.
- 4Display Korean, Chinese, Japanese, ASCII, and Taiwanese character fonts.
- 5Connect seamlessly to Magelis SCU Series HMISAC/HMISBC Controller Modules.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony SCU | Product or Component Type | Small touchscreen display HMI |
| Display size | 3.5 inch | Pixel resolution | 320 x 240 pixels QVGA |
| Display type | Backlit LED colour TFT LCD | Touch panel | Analogue |
| Backlight lifespan | 50000 hours 65536 colours | Brightness | 16 levels via touch panel |
| View angle horiz x vert | 60° left<br />60° right<br />40° top<br />60° bottom | Character font | Korean<br />Chinese (simplified Chinese)<br />Japanese (ANK, Kanji)<br />ASCII<br />Taiwanese (traditional Chinese) |
| Width | 3.8 in (97.6 mm) | Depth | 3.1 in (80 mm) |
| Net Weight | 1.17 lb(US) (0.53 kg) | Product Certifications | UKCA<br />UKEX |
Specifications may be subject to change without notice
