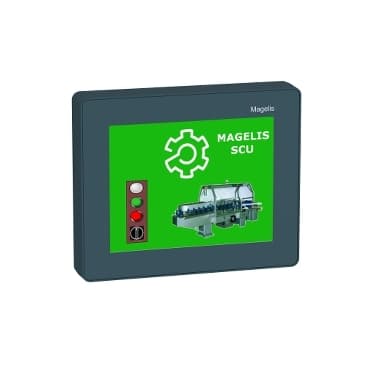

HMIS65W
Product ID:30271
Updated: 2026/4/3
Key Features
- 1Utilize a compact 3.5-inch QVGA touchscreen for space-constrained panels. 2、Display clear visuals with 320 x 240 pixel high resolution. 3、Support multiple languages including Chinese, Japanese, Korean for global use. 4、Ensure long-term operation with a 50,000-hour backlight lifespan. 5、Integrate seamlessly via serial, Ethernet, USB, and CANopen Master connectivity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony SCU | Product or Component Type | Small touchscreen display HMI |
| Display size | 3.5 inch | Pixel resolution | 320 x 240 pixels QVGA |
| Display type | Backlit LED colour TFT LCD | Touch panel | Analogue |
| Backlight lifespan | 50000 hours 65536 colours | Brightness | 16 levels via touch panel |
| View angle horiz x vert | 60° left<br />60° right<br />40° top<br />60° bottom | Character font | Korean<br />ASCII<br />Taiwanese (traditional Chinese)<br />Chinese (simplified Chinese)<br />Japanese (ANK, Kanji) |
| Width | 3.8 in (97.6 mm) | Depth | 3.1 in (80 mm) |
| Net Weight | 1.17 lb(US) (0.53 kg) | Product Certifications | UKCA |
Specifications may be subject to change without notice
