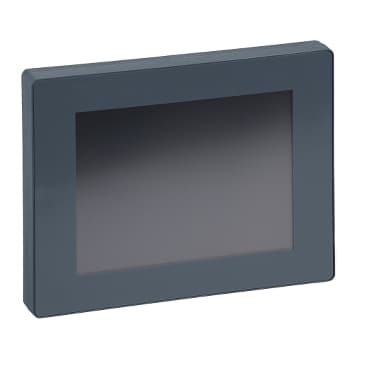

HMIS85W
Product ID:30273
Updated: 2026/7/15
Key Features
- 1Utilize a compact 5.7-inch QVGA touchscreen for space-saving integration.
- 2Ensure compliance with EU and China RoHS regulations for sustainable operations.
- 3Upgrade functionality via digital modules and swappable components.
- 4View data clearly with wide 60° left/right and 40°/60° top/bottom angles.
- 5Rely on a 50,000-hour backlight lifespan for long-term reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony SCU | Product or Component Type | Small touchscreen display HMI |
| Display size | 5.7 inch | Pixel resolution | 320 x 240 pixels QVGA |
| Display type | Backlit LED colour TFT LCD | Touch panel | Analogue |
| Backlight lifespan | 50000 hours 65536 colours | Brightness | 16 levels via touch panel |
| View angle horiz x vert | 60° left<br />60° right<br />40° top<br />60° bottom | Character font | Taiwanese (traditional Chinese)<br />Japanese (ANK, Kanji)<br />Korean<br />ASCII<br />Chinese (simplified Chinese) |
| Width | 6.4 in (163 mm) | Depth | 5.09 in (129.4 mm) |
| Net Weight | 0.893 lb(US) (0.405 kg) | Product Certifications | UKCA<br />UKEX |
Specifications may be subject to change without notice
