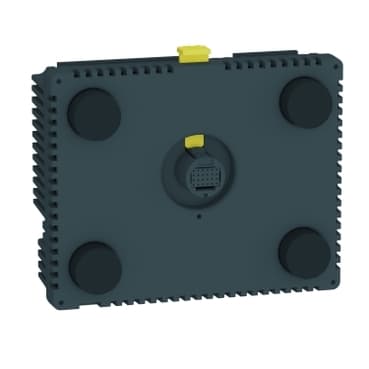

HMISBC
Product ID:30275
Updated: 2026/4/3
Key Features
- 1Ensure industrial reliability with robust specs for harsh environments. 2、Integrate seamlessly with HMIS65 and HMIS85 screen modules. 3、Meet SVHC and RoHS compliance for environmental safety. 4、Control processes precisely with advanced monitoring capabilities. 5、Operate intuitively via a full-color touch screen interface.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony SCU | Product or Component Type | Controller |
| Device presentation | Basic element | Supply | External source |
| [Us] rated supply voltage | 24 V 20.4…28.8 V)DC | Immunity to microbreaks | 10 ms |
| Inrush current | 30 A | Power consumption in W | 15 W |
| Local signalling | No indicator | Number of pages | Limited by internal memory capacity |
| Software Designation | SoMachine | Operating System | Harmony |
| Processor name | CPU RISC | Processor frequency | 333 MHz |
| Memory description | Flash NAND, 128 MB<br />Internal data storage FRAM, 128 kB<br />Application run DRAM, 128 MB | Integrated connection type | 1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s)<br />1 Ethernet TCP/IP - RJ45<br />1 USB 2.0 type mini B<br />1 USB 2.0 type A<br /> CANopen master bus - SUB-D 9 |
| Realtime clock | Built-in | Downloadable protocols | Modbus<br />CANopen<br />Modbus TCP/IP |
| Fixing mode | By 1 nut Ø 22 mm 1...6 mm thick panel | Enclosure Material | PC/PBT |
| Shock resistance | 147 m/s² 11 ms on DIN rail)IEC 60068-2-27<br />294 m/s² 6 ms on panel mounting)IEC 60068-2-27 | Vibration resistance | +/- 3.5 mm 5…9 Hz) IEC 60068-2-6<br />1 gn 9…150 Hz) IEC 60068-2-6 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3<br />Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4<br />Surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5<br />Surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5<br />Surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5<br />Surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5<br />Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6<br />Conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011<br />Radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011 | Discrete input number | 2 fast input (normal mode) IEC 61131-2 Type 1<br />6 digital input IEC 61131-2 Type 1 |
| Discrete input voltage | 24 V DC sink or source (positive/negative) | Number of common point | 1 fast input (HSC mode)<br />1 digital input |
| Discrete input current | 7.83 mA fast input<br />5 mA digital | input impedance | 2.81 kOhm<br />4.7 kOhm |
| Sensor power supply | 15…28.8 V DC >= 15 V >= 5 mA <= 5 V <= 1.5 mA<br />15…28.8 V DC >= 15 V >= 2.5 mA <= 5 V <= 1 mA | Configurable filtering time | 0 ms no filter none)<br />0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2))<br />3...12 ms integrator none/run/stop) |
| Maximum input frequency | 100 kHz fast input (encoder mode) A/B<br />100 kHz fast input single phase<br />100 kHz fast input pulse/direction | Maximum cable distance between devices | Shielded cable <32.8 ft (10 m) fast input<br />Shielded cable <328.08 ft (100 m) digital input<br />Unshielded cable <164.04 ft (50 m) digital input |
| Connection pitch | 0.1 in (3.5 mm) | Overvoltage protection | With |
| Isolation between channels and internal logic | 500 V DC | Isolation between channels | None |
| Discrete output number | 2 fast output (normal mode) source<br />6 digital output source | Discrete output voltage | 24 V DC 19.2...28.8 V)transistor<br />24 V DC 5...30 V)relay<br />220 V AC 100...250 V)relay |
| Input/output number | 2 fast input FI0...FI1<br />2 fast output FQ0...FQ1<br />6 digital input DI0...DI5<br />6 digital output DQ0...DQ5 | Discrete output current | 2 A 4 A)5 ms opening contact digital output<br />2 A 4 A)2 ms closing contact digital output<br />300 mA2 ms fast output (normal mode)<br />50 mA2 ms fast output (PWM or PTO mode) |
| Insulation resistance | > 10 MOhm between the I/O and internal logic<br />> 10 MOhm between power supply and earth | Maximum output frequency | 100 kHz fast output (PTO mode)<br />1 kHz fast output (PWM mode) |
| Absolute accuracy error | +/- 0.1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode)<br />1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode)<br />+/- 5 % of full scale cyclic ratio 10...90% fast output (PWM or PTO mode)<br />+/- 10 % of full scale cyclic ratio 20...80% fast output (PWM or PTO mode)<br />+/- 15 % of full scale cyclic ratio 30...70% fast output (PWM or PTO mode) | Analogue input number | 2 analog input<br />2 RTDs |
| Analogue input range | 0...20 mA/4...20 mA 12 bits 250 Ohm +/- 1 %)<br />-10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm | Analogue input type | RTD - 200...600 °C 16 bitsPt 100/Pt 1000<br />RTD - 50...200 °C 16 bitsNi 100/Ni 1000<br />RTD - 200...760 °C 16 bits thermocouple J)<br />RTD - 240...1370 °C 16 bits thermocouple K)<br />RTD 0...1600 °C 16 bits thermocouple R)<br />RTD 200...1800 °C 16 bits thermocouple B)<br />RTD 0...1600 °C 16 bits thermocouple S)<br />RTD - 200...400 °C 16 bits thermocouple T)<br />RTD - 200...900 °C 16 bits thermocouple E)<br />RTD - 200...1300 °C 16 bits thermocouple N) |
| Analogue output number | 2 resistive load 12 bits + sign | Analogue output range | 0...20 mA/4...20 mA > 300 Ohm)open-circuit<br />-10...10 V/0...10 V > 2 kOhm)short-circuit |
| Height | 1.99 in (50.65 mm) | Width | 5.04 in (128 mm) |
| Depth | 4.02 in (102 mm) | Net Weight | 0.877 lb(US) (0.398 kg) |
| Standards | UL 508<br />FCC Class A<br />EN 61131-2<br />CSA C22.2 No 213 Class I Division 2<br />ANSI/ISA 12-12-01<br />IEC 61000-6-2 | Product Certifications | cULus 508<br />cUL 1604 Class 1 Division 2<br />C-tick<br />cULus CSA 22-2 No 142<br />GOST<br />KCC<br />UKCA<br />UKEX |
| marking | CE | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 5…85 % without condensation |
| Operating altitude | <= 6561.68 ft (2000 m) | Storage altitude | 0.0000000000…32808.4 ft (0…10000 m) |
| Maximum pressure | 800...1114 hPa | IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) |
| NEMA degree of protection | NEMA 4X front panel | Pollution degree | 2 IEC 60664 |
| Environmental characteristic | Corrosive gas free |
Specifications may be subject to change without notice
