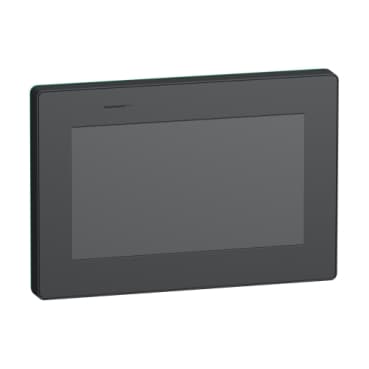

HMISTM6400FW
Product ID:30291
Updated: 2026/4/3
Key Features
- 1Display clear 7-inch color TFT LCD with 800x480 resolution. 2、Integrate seamlessly with 2 Ethernet and 2 serial communication ports. 3、Handle data efficiently using 1 GB device memory and 512 kB backup. 4、Ensure durability with a polycarbonate enclosure and aluminum front. 5、Enhance operation via EcoStruxure software with multi-screen functions.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony ST6 | Product or Component Type | Touch panel screen |
| Processor name | ARM Cortex-A8 | Processor frequency | 800 MHz |
| Memory description | 1 GB device memory<br />128 MB user data memory<br />512 KB backup memory | Display size | 7 inch |
| Display Type | Colour TFT LCD | Display colour | 16 million colours |
| Display Resolution | 800 x 480 pixels WVGA | Touch panel | Single touch analogue resistive |
| Backlight lifespan | 20000 hours white | Brightness | 16 levels |
| Character font | ASCII<br />ASCII (European characters)<br />Chinese (simplified Chinese)<br />Japanese (ANK, Kanji)<br />Katakana<br />Korean<br />Taiwanese (traditional Chinese) | [Us] rated supply voltage | 24 V DC +/- 20 %) |
| Power consumption in W | 10.4 W | Inrush current | 30 A |
| Local signalling | Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED green, flashing operating<br />Status LED green, faded stand-by<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED red, flashing operating<br />Status LED red, off power supply (OFF) | Number of pages | 200 application pages |
| Integrated connection type | 1 COM1 serial link - female RJ45 - RS232C/RS485 2400...115200 bps)<br />1 USB 2.0 type A<br />1 USB 2.0 type micro B<br />2 Ethernet - female RJ45 - 10/100BASE-T | Realtime clock | Built-in 0...50 °C<br />Built-in 10...90 % RH |
| Downloadable protocols | Modbus<br />Uni-TE<br />Third party protocols | Product brand | Schneider Electric Modicon<br />Mitsubishi Melsec<br />Omron Sysmac<br />Rockwell Automation Allen-Bradley<br />Siemens Simatic |
| Fixing mode | Ø 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201<br />Ø 22 mm hole EN 61131-2<br />Ø 22 mm hole IEC 61000-6-2 | Enclosure Material | PC |
| Front material | Plastic | Cut-out dimensions | Ø 22.5 mm |
| Height | 5.4 in (137.2 mm) | Width | 7.9 in (201.2 mm) |
| Depth | 2.3 in (57.7 mm) | Net Weight | 1.68 lb(US) (0.76 kg) |
| Immunity to microbreaks | 2 ms | Standards | EN 61000-6-4<br />EN 61000-6-2<br />EN 61131-2<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />CSA C22.2 No 213 |
| Product Certifications | CE<br />UKCA<br />cULus<br />RCM<br />KC<br />cULus Class 1 Division 2<br />ABS<br />RINA<br />DNV | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
| Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Relative humidity | 10…90 % non-condensing | Operating altitude | 6561.68 ft (2000 m) |
| IP degree of protection | IP20 IEC 61131-2 rear panel)<br />IP65 IEC 61131-2 front panel) | NEMA degree of protection | NEMA 4 front panel (indoor use)<br />NEMA 13 front panel (in enclosure) |
| Shock resistance | 147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))EN/IEC 61131-2 | Vibration resistance | +/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2<br />9.8 m/s² 9…150 Hz) |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3<br />Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
