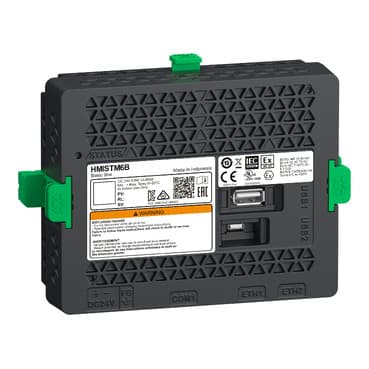

HMISTM6B
Product ID:30292
Updated: 2026/4/3
Key Features
- 1Deliver clear visuals with a high-resolution 7-inch touchscreen. 2、Ensure reliable operation with UL, CSA, and IEC certifications. 3、Enable seamless communication using dual Ethernet ports. 4、Simplify configuration with EcoStruxure software for an intuitive interface. 5、Withstand harsh conditions via IP65F protection and shock resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony ST6 | Product or Component Type | Touch panel screen |
| Software package | EcoStruxure Operator Terminal Expert | Processor name | ARM Cortex-A8 |
| Processor frequency | 800 MHz | Memory description | 1 GB device memory<br />128 MB user data memory<br />512 KB backup memory |
| [Us] rated supply voltage | 24 V DC +/- 20 %) | Power consumption in W | 6.8 W |
| Inrush current | 30 A | Local signalling | Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED green, flashing operating<br />Status LED green, faded stand-by<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED red, flashing operating<br />Status LED red, off power supply (OFF) |
| Number of pages | 200 application pages | Port Ethernet | 10/100BASE |
| Integrated connection type | 1 COM1 serial link - female RJ45 - RS232C/RS485 2400...115200 bps)bottom<br />1 USB 2.0 type Aback<br />1 USB 2.0 type micro Bback<br />2 Ethernet - female RJ45bottom | Supply | External supply |
| Realtime clock | Built-in 0...50 °C<br />Built-in 10...90 % RH | Downloadable protocols | Modbus<br />Uni-TE<br />Third party protocols |
| Product brand | Schneider Electric Modicon<br />Mitsubishi Melsec<br />Omron Sysmac<br />Rockwell Automation Allen-Bradley<br />Siemens Simatic | Fixing mode | Ø 22 mm hole 1.5 to 6 mm thick panel UL 61010-2-201<br />Ø 22 mm hole IEC 61131-2<br />Ø 22 mm hole IEC 61000-6-2 |
| Enclosure Material | PC | marking | CE |
| Cut-out dimensions | Ø 22.5 mm | Height | 4.3 in (108.2 mm) |
| Width | 5.7 in (145.6 mm) | Depth | 1.6 in (41.4 mm) |
| Net Weight | 0.60 lb(US) (0.27 kg) | Immunity to microbreaks | 2 ms |
| Standards | IEC 61000-6-4<br />IEC 61000-6-2<br />IEC 61131-2<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />CSA C22.2 No 213 | Product Certifications | CE<br />UKCA<br />cULus<br />RCM<br />KC<br />cULus Class 1 Division 2<br />DNV<br />ABS<br />RINA<br />BV |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) | IP degree of protection | IP20 IEC 61131-2 rear panel) |
| Shock resistance | 147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2 | Vibration resistance | +/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2<br />9.8 m/s² 9…150 Hz) |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3<br />Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
Specifications may be subject to change without notice
