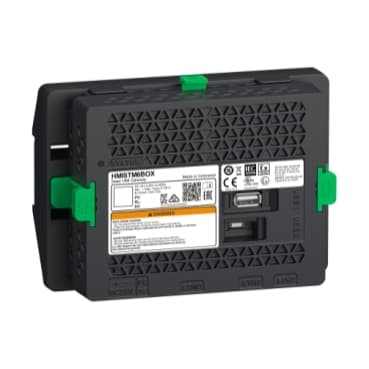

HMISTM6BOX
Product ID:30293
Updated: 2026/4/3
Key Features
- 1Choose a modular design for compact and versatile industrial applications. 2、Utilize the 800MHz ARM Cortex-A8 CPU for efficient and reliable operation. 3、Connect via 2x Ethernet, 1x COM1, and 2x USB 2.0 ports for advanced integration. 4、Enhance security with built-in EcoStruxure Secure Connect Advisor cybersecurity. 5、Rely on durable construction meeting EN, UL, CSA, CE, and ATEX standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony STM6 | Product or Component Type | Modular HMI box |
| Software package | EcoStruxure Operator Terminal Expert<br />Web viewer | Operating System | Linux |
| Processor name | ARM Cortex-A8 | Processor frequency | 800 MHz |
| Data storage equipment | 1 GB Flash disk NAND | Memory description | 512 KB backup memory<br />512 MB internal<br />1 GB flash |
| [Us] rated supply voltage | 24 V DCpower supply | Local signalling | LED multi-colour status |
| Port Ethernet | 10BASE-T/100BASE-T | Integrated connection type | 2 Ethernet TCP/IP - RJ45<br /> COM1 serial link - SUB-D 9 - RS232C/RS422/RS485 2400...115200 bps)<br /> USB 2.0 port - micro B USB<br /> display port - RJ45<br />1 USB 2.0 port - USB type A |
| Type of cooling | Natural convection | Realtime clock | Built-in |
| Height | 4.0 in (101 mm) | Width | 5.9 in (150.5 mm) |
| Depth | 2.5 in (63.3 mm) | Net Weight | 1.005 lb(US) (0.456 kg) |
| Standards | CSA C22.2 No 142<br />ANSI/ISA 12-12-01<br />UL 508<br />CSA C22.2 No 213<br />IEC 61132-2 | Product Certifications | CE<br />UKCA<br />cULus<br />RCM<br />KC<br />cULus Class 1 Division 2<br />DNV<br />ABS<br />RINA<br />BV |
| Pollution degree | 2 IEC 61131-2 ed.3 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 10…90 % non-condensing |
| Operating altitude | 2000 | Shock resistance | 147 m/s²IEC 61131-2 |
| Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) IEC 61131-2<br />9.8 m/s² 9…150 Hz) IEC 61131-2 | Electromagnetic compatibility | Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3 |
Specifications may be subject to change without notice
