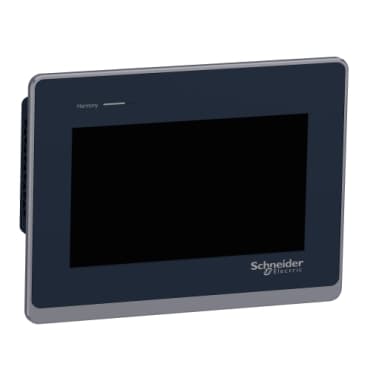

HMISTW6400
Product ID:30152
Updated: 2026/4/3
Key Features
- 1Experience high-resolution 800x480 pixel clarity on a 7-inch color TFT display. 2、Ensure secure connectivity with dual Ethernet and dual USB 2.0 ports. 3、Customize interfaces easily using batch theme and color conversion tools. 4、Rely on long-term durability from a resistive touch panel and replaceable battery. 5、Benefit from enhanced cybersecurity protection at both application and firmware levels.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony ST6 | Product or Component Type | Touch panel screen |
| Software Designation | Web interface for operator | Processor name | ARM Cortex-A8 |
| Processor frequency | 800 MHz | Memory description | 512 MB device memory<br />512 MB user data memory<br />128 kB backup memory |
| Display size | 7 inch | Display Type | Colour TFT LCD |
| Display colour | 16 million colours | Display Resolution | 800 x 480 pixels WVGA |
| Touch panel | Single touch analogue resistive | Backlight lifespan | 50000 hours white |
| Brightness | 16 levels | Character font | ASCII<br />ASCII (European characters)<br />Katakana |
| [Us] rated supply voltage | 24 V DC +/- 20 %) | Power consumption in W | 9 W |
| Inrush current | 30 A | Local signalling | Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED green, flashing operating<br />Status LED green, faded stand-by<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED red, flashing operating<br />Status LED red, off power supply (OFF) |
| Port Ethernet | 10/100BASE | Integrated connection type | 1 USB 2.0 type Aback<br />1 Ethernet - female RJ45bottom |
| Supply | External supply | Realtime clock | Built-in 0...50 °C<br />Built-in 10...90 % RH |
| Fixing mode | By 4 screws 1.6...5 mm thick panel UL 61010-2-201<br />By 4 screws IEC 61131-2<br />By 4 screws IEC 61000-6-2 | Enclosure Material | PC |
| Front material | Aluminium | marking | CE |
| Cut-out dimensions | 190 x 135 mm panel cut dimension | Height | 6.02 in (153 mm) |
| Width | 8.2 in (208 mm) | Depth | 1.8 in (45 mm) |
| Net Weight | 1.8 lb(US) (0.8 kg) | Immunity to microbreaks | 5 ms |
| Standards | IEC 61000-6-4<br />IEC 61000-6-2<br />IEC 61131-2<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201 | Product Certifications | CSA<br />CE<br />UKCA |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) | IP degree of protection | IP20 IEC 61131-2 rear panel)<br />IP65 IEC 61131-2 front panel) |
| NEMA degree of protection | NEMA 4 front panel (indoor use)<br />NEMA 13 front panel (in enclosure) | Shock resistance | 147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2 |
| Vibration resistance | +/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2<br />9.8 m/s² 9…150 Hz) | Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3<br />Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
Specifications may be subject to change without notice
