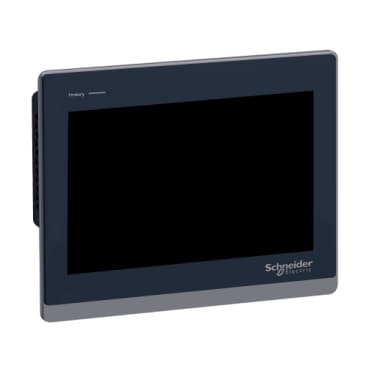

HMISTW6500
Product ID:30153
Updated: 2026/4/3
Key Features
- 1View clear process data on a 10-inch high-resolution color TFT LCD display. 2、Operate intuitively with a reliable single-touch resistive touch panel. 3、Ensure compliance in harsh environments with EN, UL, and CSA certifications. 4、Connect multiple devices using dual Ethernet and USB 2.0 ports. 5、Rely on robust IP65F protection and an aluminum front panel.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony ST6 | Product or Component Type | Touch panel screen |
| Software Designation | Web interface for operator | Processor name | ARM Cortex-A8 |
| Processor frequency | 800 MHz | Memory description | 512 MB device memory<br />512 MB backup memory<br />128 kB user data memory |
| Display size | 10 inch | Display Type | Colour TFT LCD |
| Display colour | 16 million colours | Display Resolution | 1024 x 600 pixels WSVGA |
| Touch panel | Single touch analogue resistive | Backlight lifespan | 50000 hours white |
| Brightness | 16 levels | Character font | ASCII<br />ASCII (European characters)<br />Katakana |
| [Us] rated supply voltage | 24 V DC +/- 20 %) | Power consumption in W | 12.6 W |
| Inrush current | 30 A | Local signalling | Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED green, flashing operating<br />Status LED green, faded stand-by<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED red, flashing operating<br />Status LED red, off power supply (OFF) |
| Port Ethernet | 10/100BASE | Integrated connection type | 1 USB 2.0 type Aback<br />1 Ethernet - female RJ45bottom |
| Supply | External supply | Realtime clock | Built-in 0...50 °C<br />Built-in 10...90 % RH |
| Fixing mode | By 4 screws 1.6...5 mm thick panel UL 61010-2-201<br />By 4 screws IEC 61131-2<br />By 4 screws IEC 61000-6-2 | Enclosure Material | PC |
| Front material | Aluminium | marking | CE |
| Cut-out dimensions | 255 x 185 mm panel cut dimension | Height | 8.0 in (203 mm) |
| Width | 10.7 in (273 mm) | Depth | 1.9 in (47 mm) |
| Net Weight | 2.9 lb(US) (1.3 kg) | Immunity to microbreaks | 10 ms |
| Standards | IEC 61000-6-4<br />IEC 61000-6-2<br />IEC 61131-2<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201 | Product Certifications | CSA<br />CE<br />UKCA |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 10…90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) | IP degree of protection | IP20 IEC 61131-2 rear panel)<br />IP65 IEC 61131-2 front panel) |
| NEMA degree of protection | NEMA 4 front panel (indoor use)<br />NEMA 13 front panel (in enclosure) | Shock resistance | 147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2 |
| Vibration resistance | +/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2<br />9.8 m/s² 9…150 Hz) | Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3<br />Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
Specifications may be subject to change without notice
