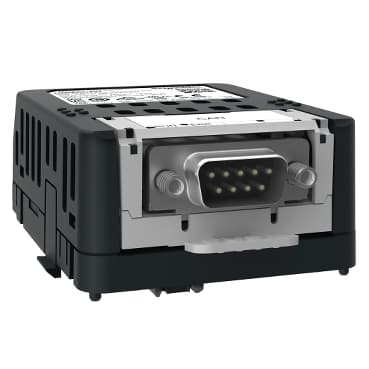

HMIZGCAN
Product ID:30702
Updated: 2026/7/15
Key Features
- 1Integrate seamlessly with CANopen networks for efficient industrial communication.
- 2Support a wide range of universal panels for versatile application use.
- 3Transfer data reliably via dual serial and Gigabit Ethernet ports.
- 4Withstand harsh environments up to 60°C with a durable aluminum design.
- 5Simplify installation using modular design with anti-drop fasteners.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony GTU | Product or Component Type | CANopen slave unit |
| Accessory / separate part destination | Universal panel | Power consumption in W | 0.7 W |
| Input voltage | 3.3 V DC | Range Compatibility | Harmony GTU |
| Width | 2.4 in (60 mm) | Height | 3.4 in (87 mm) |
| Depth | 1.6 in (41 mm) | Net Weight | 0.2 lb(US) (0.1 kg) |
| Ambient air temperature for operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Relative Humidity | 10…90 % | IP degree of protection | IP2 |
| Vibration resistance | 3.5 mm constant amplitude 5…9 Hz)EN/IEC 61131-2<br />9.8 m/s² 9…150 Hz)EN/IEC 61131-2 | Shock resistance | 147 m/s² |
| Product Certifications | IEC-Ex<br />KC<br />CE<br />EAC<br />RCM<br />ATEX zone 2/22<br />UKCA<br />UKEX |
Specifications may be subject to change without notice
