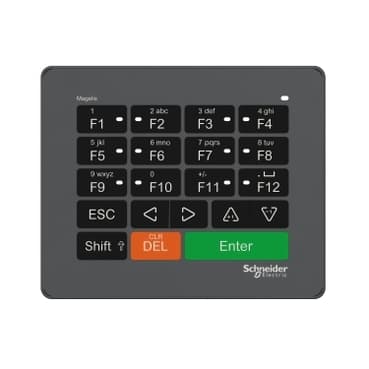

HMIZKB1
Product ID:30792
Updated: 2026/7/15
Key Features
- 1Deploy an IP65-rated, shock-resistant keyboard for harsh industrial environments.
- 2Customize 12 backlit function keys for clear, instant operator commands.
- 3Switch between alphanumeric and function key modes for versatile HMI input.
- 4Meet IEC 61131-2 and EMC standards for guaranteed safety and compliance.
- 5Integrate seamlessly with Schneider Harmony HMI terminals for quick setup.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony HMIZ | Product or Component Type | Keyboard |
| Product Compatibility | HMIGXO<br />HMISTU<br />HMISTO<br />HMIGTO<br />HMISCU | Device Application | Industrial machines<br />Food and beverage |
| Provided equipment | 1 x User Manual<br />1 x tightening wrench<br />1 x anti-rotation tee<br />1 x USB cable type A/mini-B 5.9 ft (1.8 m)<br />1 x USB type mini-B cable clamp<br />1 x fixing nut<br />1 x replaceable label for function keys | Software designation | Vijeo Designer >= V6.2 |
| Connector Type | Mini B USB | Number of key | 20 |
| Number of customisable keys | 12 with integrated LEDs | Colour of cover | Front dark grey |
| [Us] rated supply voltage | 5 V DC USB 2.0 | Supply voltage limits | 4.75…5.25 V DC |
| Power consumption in W | 0.75 W | Shock resistance | 147 m/s²3 chocks in each direction X, Y and Z IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2<br />Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4 | Mounting Location | Flat surface |
| Quantity per Set | 1 piece | Height | 3.1 in (80 mm) |
| Width | 3.8 in (97.6 mm) | Depth | 1.2 in (31.5 mm) |
| Net Weight | 0.33 lb(US) (0.15 kg) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
| Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) | Relative humidity | 10…90 % 32…102 °F (0…39 °C) non-condensing |
| Pollution degree | 2 | Environmental characteristic | Corrosive gas free |
| Operating altitude | <= 6561.68 ft (2000 m) | Vibration resistance | 3.5 mm 5…9 Hz)IEC 61131-2 |
| IP degree of protection | IP65 front panel (in enclosure)) | NEMA degree of protection | NEMA 4X indoor installation<br />NEMA 4X enclosed outdoor |
| Standards | EN 61000-6-4<br />CSA C22.2 No 213<br />EN 61000-6-2<br />CSA C22.2 No 142<br />ANSI/ISA 12.12.01<br />EMC 2004/108/EC<br />UL 508 | Product Certifications | CE<br />RCM<br />EAC<br />UL/cUL listed |
| Level or class | Class I Division 2 Groups A/B/C/D |
Specifications may be subject to change without notice
