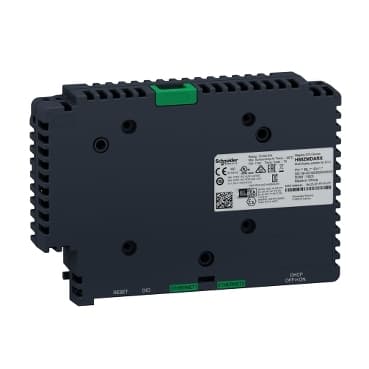

HMIZMDARX
Product ID:30806
Updated: 2026/7/15
Key Features
- 1Support up to three additional external Harmony GTU displays.
- 2Connect via two robust Ethernet TCP/IP RJ45 jacks.
- 3Ensure compatibility with high-resolution screens for clarity.
- 4Simplify installation and maintenance with replaceable parts.
- 5Withstand harsh conditions with high-temperature resistance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony GTU | accessory / separate part type | Adaptor |
| accessory / separate part category | Adaptation accessory | Product compatibility | Harmony GTU open<br /> Harmony iPC industrial PCs |
| Accessory / separate part destination | Harmony GTU display | [Us] rated supply voltage | 12 V DC module supply |
| Input voltage | 12 V DC module supply<br />24 V DC | Integrated connection type | 1 DIO terminal block 3 inputs + 1 output<br />2 Ethernet TCP/IP RJ45 jack |
| Output voltage | 24 V | Output voltage type | DC |
| Number output current | 50 mA | Power consumption in W | 8 W |
| Net Weight | 1.8 lb(US) (0.8 kg) | Local signalling | LED green, steady operating status (RUN)<br />LED green, faded stand-by<br />LED green/orange, alternate program mode<br />LED orange, flashing establishing communication connection<br />LED red, steady power ON<br />LED green, orange and red, alternate ERROR (fault) |
| Type of cooling | Natural | Height | 5.2 in (131 mm) |
| Depth | 1.4 in (35 mm) | Width | 7.4 in (188 mm) |
| Pollution degree | 2 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Operating altitude | 6561.68 ft (2000 m) |
| Product Certifications | UL 508<br />CSA C22-2 No 142<br />CSA C22-2 No 213<br />cULus HazLoc Class I Division 2 ANSI/ISA 12-12-01<br />IEC-Ex<br />ATEX zone 2/22<br />EAC<br />UKCA<br />UKEX | Relative Humidity | 10…90 % non-condensing |
| Vibration resistance | 3.5 mm constant amplitude 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2<br />9.8 m/s² constant acceleration 9…150 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) EN/IEC 61131-2 | Shock resistance | 147 m/s²X, Y, Z directions for 3 times EN/IEC 61131-2 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 signal ports)<br />2 kV IEC 61000-4-4 power ports) | Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 |
| Environmental characteristic | Corrosive gas free<br />Dustproof |
