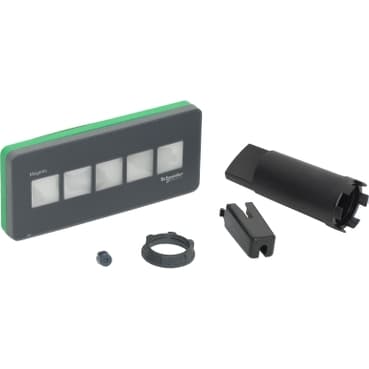

HMIZRA1
Product ID:30814
Updated: 2026/7/15
Key Features
- 1Operate in harsh environments with IP65 protection.
- 2Select and adjust switch colors with multi-color LEDs.
- 3Ensure easy visualization via a wide viewing angle.
- 4Use in dirty, water-resistant environments safely.
- 5Connect seamlessly with Harmony HMI terminals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony HMIZ | Product or Component Type | Illuminated USB switch |
| Product compatibility | XBTGC - controller panel<br />XBTGT2... - advanced touch panel<br />HMISTO - touch panel<br />HMISCU - touch panel<br />XBTGT6... - advanced touch panel<br />HMIGTW - advanced touch panel<br />XBTGK - graphic display<br />XBTGT4... - advanced touch panel<br />XBTGT5... - advanced touch panel<br />XBTGT7... - advanced touch panel<br />HMISTU - touch panel<br />HMIGTO - advanced touch panel<br />HMIPSP - S-Panel PC<br />HMIPSO - S-Panel PC<br />HMIBMU - Modular Box PC<br />HMIBMP - Modular Box PC<br />HMIBMO - Modular Box PC<br />HMIBMI - Modular Box PC | Device Application | Food and beverage<br />Industrial machines |
| Provided equipment | 1 x User Manual<br />1 x USB type B cable clamp<br />1 x fixing nut<br />1 x tightening wrench<br />1 x anti-rotation tee<br />1 x gasket<br />1 x insert label<br />1 x USB cable type A/B 3.3 ft (1 m) | Software designation | Vijeo Designer >= V6.1 SP2 |
| Connector Type | USB type B | Control type | 5 push-buttons multi-colour backlit LED |
| Colour of cover | Front dark grey | [Us] rated supply voltage | 5 V DC USB 2.0 |
| Supply voltage limits | 4.75…5.25 V DC | Power consumption in W | 2 W |
| Shock resistance | 147 m/s²3 chocks in each direction X, Y and Z IEC 61131-2 | Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2<br />Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4 |
| Mounting Location | Flat surface | Quantity per Set | 1 piece |
| Height | 2.1 in (54 mm) | Width | 4.8 in (122 mm) |
| Depth | 1.1 in (28 mm) | Net Weight | 0.24 lb(US) (0.11 kg) |
| Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 10…90 % 32…131 °F (0…55 °C) non-condensing |
| Pollution degree | 2 | Environmental characteristic | Corrosive gas free |
| Operating altitude | <= 6561.68 ft (2000 m) | Vibration resistance | 3.5 mm 5…9 Hz)IEC 61131-2 |
| IP degree of protection | IP65 front panel (in enclosure)) | NEMA degree of protection | NEMA 4X indoor installation<br />NEMA 13 enclosed outdoor |
| Standards | CSA C22.2 No 142<br />UL 508<br />CSA C22.2 No 213<br />EN 61000-6-4<br />ANSI/ISA 12.12.01<br />EN 61000-6-2<br />EMC 2004/108/EC | Product Certifications | GOST<br />UL/cUL listed<br />C-tick<br />CE |
| Level or class | Class I Division 2 Groups A/B/C/D |
