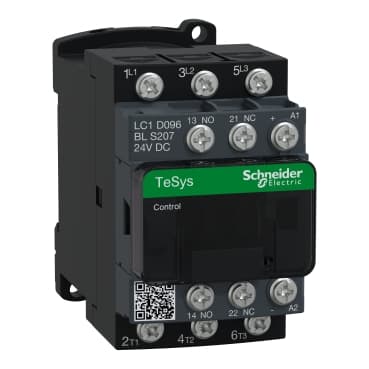

LC1D096BLS207
Product ID:30635
Updated: 2026/4/3
Key Features
- 1Ensure railway safety with EN45545 R22 HL3 compliance. 2、Control motors efficiently up to 9A for various loads. 3、Reduce energy consumption with a 24VDC low-power coil. 4、Install flexibly using DIN rail or panel mounting options. 5、Achieve global acceptance with UL, CSA, IEC, and CCC certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range | TeSys<br />TeSys Deca | Range of Product | TeSys Deca |
| Product or Component Type | Contactor | Device short name | LC1D |
| Contactor application | Resistive load<br />Motor control | Utilisation category | AC-1<br />AC-3<br />AC-3e |
| Poles description | 3P | [Ue] rated operational voltage | Power circuit <= 690 V AC 25...400 Hz |
| [Ie] rated operational current | 9 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit<br />25 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit<br />9 A (at <140 °F (60 °C)) at <= 440 V AC AC-3e for power circuit | Motor power kW | 2.2 kW at 220/230 V AC 50 Hz (AC-3)<br />4 kW at 380/400 V AC 50 Hz (AC-3)<br />4 kW at 415 V AC 50 Hz (AC-3)<br />4 kW at 440 V AC 50 Hz (AC-3)<br />5.5 kW at 500 V AC 50 Hz (AC-3)<br />5.5 kW at 660/690 V AC 50 Hz (AC-3)<br />2.2 kW at 220/230 V AC 50 Hz (AC-3e)<br />4 kW at 380/400 V AC 50 Hz (AC-3e)<br />4 kW at 415 V AC 50 Hz (AC-3e)<br />4 kW at 440 V AC 50 Hz (AC-3e)<br />5.5 kW at 500 V AC 50 Hz (AC-3e)<br />5.5 kW at 660/690 V AC 50 Hz (AC-3e) |
| Pole contact composition | 3 NO | Protective cover | With |
| Auxiliary contacts type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1<br />Mirror contact 1 NC IEC 60947-4-1 | Auxiliary contact composition | 1 NO + 1 NC |
| [Ui] rated insulation voltage | Power circuit 690 V IEC 60947-4-1<br />Signalling circuit 690 V IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947 |
| Overvoltage category | III | [Ith] conventional free air thermal current | 10 A (at 140 °F (60 °C)) for signalling circuit<br />25 A (at 140 °F (60 °C)) for power circuit |
| Irms rated making capacity | 250 A at 440 V for power circuit conforming to IEC 60947<br />140 A AC for signalling circuit conforming to IEC 60947-5-1<br />250 A DC for signalling circuit conforming to IEC 60947-5-1 | Rated breaking capacity | 250 A at 440 V for power circuit conforming to IEC 60947 |
| Associated fuse rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1<br />25 A gG at <= 690 V coordination type 1 for power circuit<br />20 A gG at <= 690 V coordination type 2 for power circuit | Time constant | 37 ms |
| Control circuit type | DC low consumption | Coil technology | With integral suppression device |
| Control circuit voltage limits | 0.1...0.25 Uc -40…158 °F (-40…70 °C) drop-out DC<br />0.7...1.25 Uc -40…158 °F (-40…70 °C) operational DC | Average impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Power dissipation per pole | 1.56 W AC-1<br />0.2 W AC-3<br />0.2 W AC-3e | Minimum switching current | 5 mA for signalling circuit |
| Minimum switching voltage | 17 V for signalling circuit | Non-overlap time | 1.5 ms on de-energisation between NC and NO contact<br />1.5 ms on energisation between NC and NO contact |
| Operating time | 77 ±15 % ms closing<br />25 ±20 % ms opening | Maximum operating rate | 3600 cyc/h 140 °F (60 °C) |
| Inrush power in W | 4 W 68 °F (20 °C)) | Hold-in power consumption in W | 4 W 68 °F (20 °C) |
| Insulation resistance | > 10 MOhm for signalling circuit | Connections - terminals | Control circuit: lugs-ring terminals - external diameter: 0.3 in (8 mm)<br />Power circuit: lugs-ring terminals - external diameter: 0.4 in (9.5 mm) |
| Tightening torque | Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals flat Ø 6 mm M3.5<br />Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals Philips No 2 M3.5<br />Power circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals Philips No 2 M3.5<br />Power circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals flat Ø 6 mm M3.5<br />Control circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals pozidriv No 2 M3.5<br />Power circuit 15.05 lbf.in (1.7 N.m) lugs-ring terminals pozidriv No 2 M3.5 | Mounting Support | Rail<br />Plate |
| Electrical durability | 0.6 Mcycles 25 A AC-1 <= 440 V<br />2 Mcycles 9 A AC-3 <= 440 V<br />2 Mcycles 9 A AC-3e <= 440 V | Mechanical durability | 30 Mcycles |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1<br />B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 | Operating altitude | 0...9842.52 ft (0...3000 m) |
| compatibility code | LC1D | Standards | EN/IEC 60947-4-1<br />EN/IEC 60947-5-1<br />EN 45545: R22 HL3<br />EN 45545: R26 HL3<br />DIN 5510-2 |
| Product Certifications | IEC<br />CCC<br />EAC<br />UA<br />TR<br />UKCA<br />CB | Climatic withstand | IACS E10<br /> IEC 60947-1 Annex Q category D |
| Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) | Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
| Height | 3.03 in (77 mm) | Width | 1.8 in (45 mm) |
| Depth | 3.7 in (95 mm) | Net Weight | 0.71 lb(US) (0.32 kg) |
| Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) <br />Vibrations contactor closed 4 Gn, 5...300 Hz) <br />Shocks contactor open 10 Gn for 11 ms) <br />Shocks contactor closed 15 Gn for 11 ms) |
Specifications may be subject to change without notice
