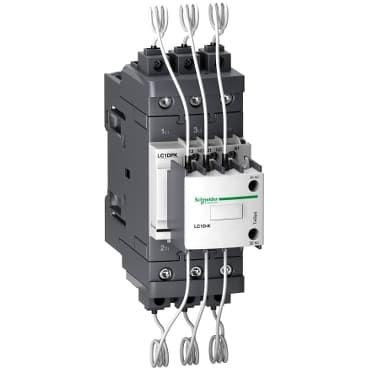

LC1DPKE7
Product ID:32423
Updated: 2026/4/5
Key Features
- 1Ensure reliable power factor correction for capacitor duty applications. 2、Operate with 3P, 33.3 kVAR, and 415 V AC coil compatibility. 3、Withstand 300,000 cycles at 400 V and 200,000 cycles at 690 V. 4、Install easily using DIN rail mounting and screw clamp terminals. 5、Meet IEC, UL, CSA, and other key international compliance standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range | TeSys | Product name | TeSys LC1D.K<br />TeSys Deca |
| Product or Component Type | Capacitor duty contactor | Device short name | LC1DPK |
| Device Application | Control | Contactor application | Power factor correction |
| Utilisation category | AC-6b | Poles description | 3P |
| power pole contact composition | 3 NO | Device location in system | Line interruption<br />Inside delta interruption |
| [Ue] rated operational voltage | Power circuit 690 V AC 50/60 Hz | Reactive power rating | 17 kvar 230 V AC 50 Hz 140 °F (60 °C)<br />30 kvar 400 V AC 50 Hz 140 °F (60 °C)<br />32 kvar 440 V AC 50 Hz 140 °F (60 °C)<br />50 kvar 690 V AC 50 Hz 140 °F (60 °C)<br />16.5 kvar 230 V AC 60 Hz 140 °F (60 °C)<br />33.3 kvar 460 V AC 60 Hz 140 °F (60 °C)<br />40 kvar 575 V AC 60 Hz 140 °F (60 °C) |
| Control circuit type | AC 50/60 Hz | [Uc] control circuit voltage | 48 V AC 50/60 Hz |
| Auxiliary contact composition | 1 NO + 2 NC instantaneous | Electrical durability | 300000 cycles 400 V<br />200000 cycles 690 V |
| Mounting Support | DIN rail<br />Plate | Standards | EN/IEC 60947-1<br />EN/IEC 60947-4-1<br />UL 60947-4-1<br />CSA C22.2 No 60947-4-1 |
| Product Certifications | IECEE CB Scheme<br />UL<br />CSA | Connections - terminals | Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid<br />Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid<br />Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end<br />Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end<br />Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible with cable end<br />Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end<br />Power circuit: EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) - cable stiffness: solid<br />Power circuit: EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) - cable stiffness: solid<br />Power circuit: EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) - cable stiffness: flexible with or without cable end<br />Power circuit: EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) - cable stiffness: flexible with or without cable end |
| Tightening torque | Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals<br />Power circuit 44.3 lbf.in (5 N.m) EverLink BTR screw connectors 0.002…0.04 in² (1…25 mm²)<br />Power circuit 70.8 lbf.in (8 N.m) EverLink BTR screw connectors 0.05 in² (35 mm²) | Maximum operating rate | 240 cyc/h |
| Auxiliary contacts type | Mechanically linked 1 NO + 2 NC IEC 60947-5-1 | IP degree of protection | IP20 front face IEC 60529 |
| Ambient Air Temperature for Operation | 23…140 °F (-5…60 °C) | Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) |
| Operating altitude | 0...9842.52 ft (0...3000 m) | Height | 6.5 in (166 mm) |
| Width | 2.2 in (55 mm) | Depth | 6.1 in (156 mm) |
| Net Weight | 2.9 lb(US) (1.3 kg) |
Specifications may be subject to change without notice
