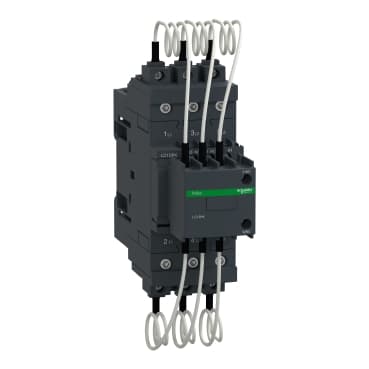

LC1DPKM7
Product ID:32426
Updated: 2026/4/5
Key Features
- 1Support up to 30 kVAR reactive power for efficient correction. 2、Feature a compact and robust design for harsh environments. 3、Enable versatile DIN rail or panel mounting options. 4、Ensure reliable switching to minimize voltage drops. 5、Meet IEC and UL standards for safety compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range | TeSys<br />TeSys Deca | Product name | TeSys LC1D.K<br />TeSys Deca |
| Product or Component Type | Capacitor duty contactor | Device short name | LC1DPK |
| Device Application | Control | Contactor application | Power factor correction |
| Utilisation category | AC-6b | Poles description | 3P |
| power pole contact composition | 3 NO | Device location in system | Inside delta interruption<br />Line interruption |
| [Ue] rated operational voltage | Power circuit 690 V AC 50/60 Hz | Reactive power rating | 17 kvar 230 V AC 50 Hz 140 °F (60 °C)<br />30 kvar 400 V AC 50 Hz 140 °F (60 °C)<br />32 kvar 440 V AC 50 Hz 140 °F (60 °C)<br />50 kvar 690 V AC 50 Hz 140 °F (60 °C)<br />16.5 kvar 230 V AC 60 Hz 140 °F (60 °C)<br />33.3 kvar 460 V AC 60 Hz 140 °F (60 °C)<br />40 kvar 575 V AC 60 Hz 140 °F (60 °C) |
| Control circuit type | AC 50/60 Hz | [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Auxiliary contact composition | 1 NO + 2 NC instantaneous | Electrical durability | 300000 cycles 400 V<br />200000 cycles 690 V |
| Mounting Support | DIN rail<br />Plate | Standards | EN/IEC 60947-1<br />EN/IEC 60947-4-1<br />UL 60947-4-1<br />CSA C22.2 No 60947-4-1<br />IEC 60335-1 |
| Product Certifications | IECEE CB Scheme<br />UL<br />CSA<br />UKCA | Connections - terminals | Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid<br />Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid<br />Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end<br />Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end<br />Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible with cable end<br />Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end<br />Power circuit: EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) - cable stiffness: solid<br />Power circuit: EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) - cable stiffness: solid<br />Power circuit: EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) - cable stiffness: flexible with or without cable end<br />Power circuit: EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) - cable stiffness: flexible with or without cable end |
| Tightening torque | Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals<br />Power circuit 44.3 lbf.in (5 N.m) EverLink BTR screw connectors 0.002…0.04 in² (1…25 mm²)<br />Power circuit 70.8 lbf.in (8 N.m) EverLink BTR screw connectors 0.05 in² (35 mm²) | Maximum operating rate | 240 cyc/h |
| Auxiliary contacts type | Mechanically linked 1 NO + 2 NC IEC 60947-5-1 | IP degree of protection | IP20 front face IEC 60529 |
| Ambient Air Temperature for Operation | 23…140 °F (-5…60 °C) | Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) |
| Operating altitude | 0...9842.52 ft (0...3000 m) | Height | 6.5 in (166 mm) |
| Width | 2.2 in (55 mm) | Depth | 6.1 in (156 mm) |
| Net Weight | 2.9 lb(US) (1.3 kg) |
