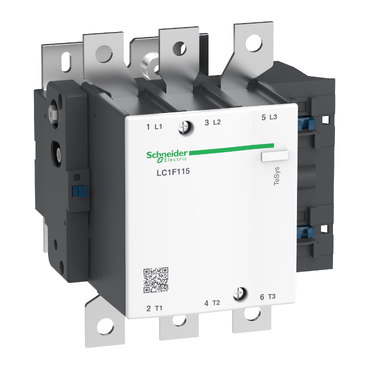

LC1F115GD

Product ID:32701

Updated: 2026/4/5

Key Features

1Ensure high reliability for resistive loads and large motor starting. 2、Apply to fans, crushers, pumps, compressors, and cranes. 3、Incorporate overload protection for motors up to 800 HP. 4、Install easily with compact design and screw clamp terminals. 5、Meet standards like IEC 60947-1 and IEC 60947-4-1.

Technical Specifications

Detailed engineering parameters

Parameter	Value	Parameter	Value
Range	TeSys	Range of Product	TeSys F
Product or Component Type	Contactor	Device short name	LC1F
Contactor application	Motor control<br />Resistive load	Utilisation category	AC-3<br />AC-4<br />AC-1
Poles description	3P	[Ue] rated operational voltage	<= 690 V AC 50/60 Hz<br /><= 460 V DC
[Uc] control circuit voltage	125 V DC	[Ie] rated operational current	200 A (at <104 °F (40 °C)) at <= 440 V AC-1<br />115 A (at <131 °F (55 °C)) at <= 440 V AC-3
[Uimp] rated impulse withstand voltage	8 kV	[Ith] conventional free air thermal current	200 A (at 104 °F (40 °C))
Rated breaking capacity	920 A conforming to IEC 60947-4-1	[Icw] rated short-time withstand current	1100 A 104 °F (40 °C) - 10 s<br />640 A 104 °F (40 °C) - 30 s<br />520 A 104 °F (40 °C) - 1 min<br />400 A 104 °F (40 °C) - 3 min<br />320 A 104 °F (40 °C) - 10 min
Associated fuse rating	125 A aM at <= 440 V<br />200 A gG at <= 440 V	Average impedance	0.37 mOhm - Ith 200 A 50 Hz
[Ui] rated insulation voltage	1000 V IEC 60947-4-1<br /> 1500 V VDE 0110 group C	Power dissipation per pole	15 W AC-1<br />5 W AC-3
Overvoltage category	III	power pole contact composition	3 NO
Motor power kW	55 kW at 380...400 V AC 50/60 Hz (AC-3)<br />59 kW at 415 V AC 50/60 Hz (AC-3)<br />59 kW at 440 V AC 50/60 Hz (AC-3)<br />75 kW at 500 V AC 50/60 Hz (AC-3)<br />80 kW at 660...690 V AC 50/60 Hz (AC-3)<br />30 kW at 220...230 V AC 50/60 Hz (AC-3)<br />18.5 kW at 400 V AC 50/60 Hz (AC-4)	Control circuit voltage limits	Operational 0.85...1.1 Uc 131 °F (55 °C))<br />Drop-out 0.15...0.2 Uc 131 °F (55 °C))
Mechanical durability	10 Mcycles	Inrush power in W	560 W 68 °F (20 °C))
Hold-in power consumption in W	4.5 W 68 °F (20 °C)	Maximum operating rate	2400 cyc/h 131 °F (55 °C)
Operating time	30...40 ms closing<br />30...50 ms opening	Connections - terminals	Power circuit bar 2 20 x 3 mm<br />Power circuit lugs-ring terminals 1 0.1 in² (95 mm²)<br />Power circuit connector 1 0.1 in² (95 mm²)<br />Control circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible without cable end<br />Control circuit screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)flexible without cable end<br />Control circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible with cable end<br />Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²)flexible with cable end<br />Control circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)solid without cable end<br />Control circuit screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)solid without cable end<br />Power circuit bolted connection
Tightening torque	Power circuit 88.5 lbf.in (10 N.m)<br />Control circuit 10.6 lbf.in (1.2 N.m)	Mounting Support	Plate
Heat dissipation	4.5 W	Standards	IEC 60947-4-1<br />IEC 60947-1<br />EN 60947-1<br />JIS C8201-4-1<br />EN 60947-4-1
Product Certifications	CB<br />RINA<br />DNV<br />RMRoS<br />LROS (Lloyds register of shipping)<br />CCC<br />UL<br />ABS<br />BV	compatibility code	LC1F
Control circuit type	DC standard	IP degree of protection	IP2X front face with shrouds IEC 60529<br />IP2X front face with shrouds VDE 0106
Protective treatment	TH	Ambient Air Temperature for Operation	-40…140 °F (-40…60 °C)
Ambient Air Temperature for Storage	-76…176 °F (-60…80 °C)	Permissible ambient air temperature around the device	140…158 °F (60…70 °C) at Uc
Height	6.4 in (162 mm)	Width	6.4 in (163.3 mm)
Depth	6.7 in (171 mm)	Operating altitude	9842.52 ft (3000 m) without derating
Net Weight	7.56 lb(US) (3.43 kg)

Specifications may be subject to change without notice
