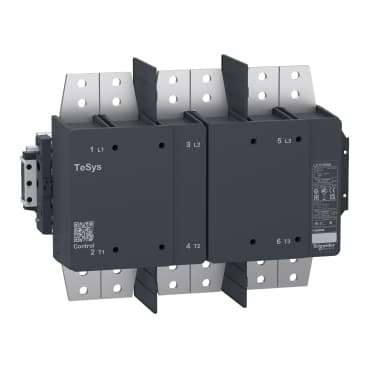

LC1F2600MD
Product ID:32770
Updated: 2026/4/4
Key Features
- 1Achieve reliable high-temperature operation with a high operating rate. 2、Simplify installation using the special drawer-mounted coil design. 3、Meet global compliance with multi-standard IEC and UL certifications. 4、Reduce energy costs via the low sealed consumption 220/230V DC coil. 5、Ensure long-lasting performance with a durable 3900A breaking capacity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range | TeSys | Range of Product | TeSys F |
| Product or Component Type | Contactor | Device short name | LC1F |
| Contactor application | Resistive load | Utilisation category | AC-1 |
| Poles description | 3P | [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz |
| [Uc] control circuit voltage | 220 V DC | [Ie] rated operational current | 2600 A (at <140 °F (60 °C)) AC AC-1 |
| [Uimp] rated impulse withstand voltage | 8 kV | [Ith] conventional free air thermal current | 2600 A (at 140 °F (60 °C)) |
| Rated breaking capacity | 3900 A conforming to IEC 60947-4-1 | [Icw] rated short-time withstand current | 12000 A 104 °F (40 °C) - 10 s<br />9000 A 104 °F (40 °C) - 30 s<br />7000 A 104 °F (40 °C) - 1 min<br />6000 A 104 °F (40 °C) - 3 min<br />4000 A 104 °F (40 °C) - 10 min |
| Associated fuse rating | 2500 A gG at <= 440 V | Average impedance | 0.1 mOhm - Ith 2600 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V IEC 60947-4-1<br /> 1000 V UL 60947-4-1 | Power dissipation per pole | 250 W AC-1 |
| Overvoltage category | III | power pole contact composition | 3 NO |
| Control circuit voltage limits | Operational 0.85...1.1 Uc 131 °F (55 °C))<br />Drop-out 0.2...0.35 Uc 131 °F (55 °C)) | Inrush power in W | 2600 W 68 °F (20 °C)) |
| Hold-in power consumption in W | 18 W 68 °F (20 °C) | Maximum operating rate | 600 cyc/h 131 °F (55 °C) |
| Operating time | 60...70 ms closing<br />40...50 ms opening | Connections - terminals | Control circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible without cable end<br />Control circuit screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)flexible without cable end<br />Control circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible with cable end<br />Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²)flexible with cable end<br />Control circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)solid without cable end<br />Control circuit screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)solid without cable end<br />Power circuit bar 3 100 x 10 mm |
| Tightening torque | Control circuit 10.6 lbf.in (1.2 N.m)<br />Power circuit 513.3 lbf.in (58 N.m) | Mounting Support | Plate |
| Heat dissipation | 40 W | Standards | EN 60947-4-1<br />IEC 60947-1<br />IEC 60947-4-1<br />EN 60947-1<br />JIS C8201-4-1<br />UL 60947-4-1<br />CSA C22.2 No 60947-4-1 |
| Product Certifications | CB Scheme<br />CCC<br />CSA<br />UL<br />UKCA<br />EAC | Compatibility code | LC1F |
| Control circuit type | DC standard | IP degree of protection | IP20 front face with shrouds IEC 60529<br />IP20 front face with shrouds VDE 0106 |
| Protective treatment | TH | Ambient Air Temperature for Operation | 23…104 °F (-5…40 °C) |
| Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) | Permissible ambient air temperature around the device | -40…140 °F (-40…60 °C) |
| Height | 15.04 in (382 mm) | Width | 20.4 in (519 mm) |
| Depth | 9.9 in (251 mm) | Operating altitude | 9842.52 ft (3000 m) without derating |
| Net Weight | 79.4 lb(US) (36 kg) |
