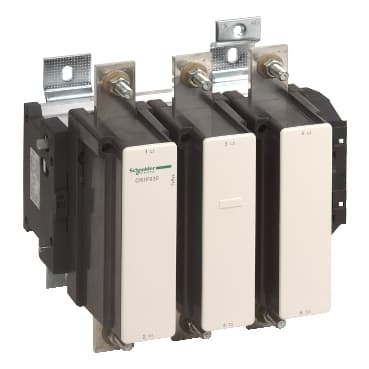

LC1F6309
Product ID:33040
Updated: 2026/7/15
Key Features
- 1Handle high power up to 1000V and 1000A without coil.
- 2Ensure reliable and efficient motor control in industrial settings.
- 3Integrate easily into panels with a compact design.
- 4Apply across HVAC, manufacturing, and other versatile uses.
- 5Achieve long-lasting performance with durable construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range | TeSys | Product name | TeSys F |
| Product or Component Type | Contactor | Device short name | LC1F |
| Contactor application | Resistive load | Utilisation category | AC-1 |
| Poles description | 3P | power pole contact composition | 3 NO |
| [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz<br /> <= 460 V DC | [Ie] rated operational current | 1000 A 104 °F (40 °C)) <= 440 V AC AC-1 |
| [Uimp] rated impulse withstand voltage | 8 kV | Overvoltage category | III |
| [Ith] conventional free air thermal current | 1000 A (at 104 °F (40 °C))<br />1250 A | Irms rated making capacity | 6300 A AC conforming to IEC 60947-4-1 |
| Rated breaking capacity | 5040 A conforming to IEC 60947-4-1 | [Icw] rated short-time withstand current | 5050 A 104 °F (40 °C) - 10 s<br />4400 A 104 °F (40 °C) - 30 s<br />3400 A 104 °F (40 °C) - 1 min<br />2200 A 104 °F (40 °C) - 3 min<br />1600 A 104 °F (40 °C) - 10 min |
| Associated fuse rating | 630 A aM at <= 440 V<br />1000 A gG at <= 440 V | Average impedance | 0.12 mOhm - Ith 1000 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V IEC 60947-4-1<br /> 1500 V VDE 0110 group C | Power dissipation per pole | 120 W AC-1<br />48 W AC-3 |
| Mounting Support | Plate | Standards | EN 60947-4-1<br />JIS C8201-4-1<br />IEC 60947-4-1<br />EN 60947-1<br />IEC 60947-1 |
| Product Certifications | RMRoS<br />RINA<br />DNV<br />CB<br />ABS<br />CSA<br />LROS (Lloyds register of shipping)<br />UL<br />BV | Connections - terminals | Power circuit bar 2 60 x 5 mm |
| Tightening torque | Power circuit 513.3 lbf.in (58 N.m) | Mechanical durability | 5 Mcycles |
| compatibility code | LC1F | IP degree of protection | IP20 front face with shrouds IEC 60529<br />IP20 front face with shrouds VDE 0106 |
| Protective treatment | TH | Ambient Air Temperature for Operation | 23…131 °F (-5…55 °C) |
| Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) | Permissible ambient air temperature around the device | -40…158 °F (-40…70 °C) at Uc |
| Operating altitude | 9842.52 ft (3000 m) without derating | Mechanical robustness | Vibrations contactor open2 Gn, 5...300 Hz<br />Vibrations contactor closed4 Gn, 5...300 Hz<br />Shocks contactor open6 Gn for 1/2 sine wave (11 ms)<br />Shocks contactor closed15 Gn for 1/2 sine wave (11 ms) |
| Height | 12.0 in (304 mm) | Width | 12.2 in (309 mm) |
| Depth | 10.04 in (255 mm) | Net Weight | 41.006 lb(US) (18.6 kg) |
Specifications may be subject to change without notice
