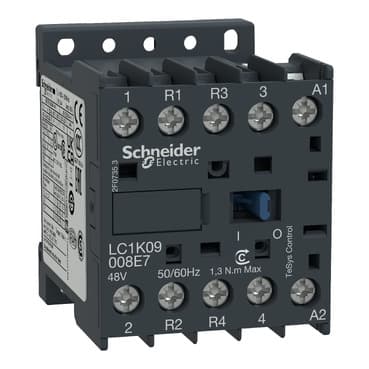

LC1K09008N7
Product ID:38178
Updated: 2026/7/14
Key Features
- 1Achieve high reliability with a rating of 3600 cycles per hour for continuous operation.
- 2Control resistive loads efficiently using the 2NO-2NC contact configuration.
- 3Ensure versatile compatibility with programmable controller outputs in industrial settings.
- 4Meet environmental standards with the Schneider Electric Green Premium label.
- 5Rely on durable construction for long-lasting performance in harsh environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | TeSys K | Range | TeSys |
| Product or Component Type | Contactor | Contactor application | Resistive load |
| Utilisation category | AC-1 | Poles description | 4P |
| Pole contact composition | 2 NO + 2 NC | Control circuit type | AC 50/60 Hz |
| [Uc] control circuit voltage | 400...415 V AC 50/60 Hz | Control circuit voltage limits | Operational: 0.85...1.1 Uc (at <122 °F (50 °C))<br />Drop-out: 0.2...0.75 Uc (at <122 °F (50 °C)) |
| [Ui] rated insulation voltage | Power circuit 600 V UL 508<br />Power circuit 690 V IEC 60947-4-1<br />Power circuit 600 V CSA C22.2 No 14 | [Uimp] rated impulse withstand voltage | 8 kV |
| Overvoltage category | III | Mounting Support | Rail<br />Plate |
| Standards | EN/IEC 60947-4-1<br />GB/T 14048.4<br />UL 60947-4-1<br />CSA C22.2 No 60947-4-1<br />JIS C8201-4-1 | IP degree of protection | IP2X VDE 0106 |
| Protective treatment | TC IEC 60068<br />TC DIN 50016 | Flame retardance | V1 conforming to UL 94<br />Requirement 2 conforming to NF F 16-101<br />Requirement 2 conforming to NF F 16-102 |
| Connections - terminals | screw clamp terminals 1 0.002…0.006 in² (1.5…4 mm²)solid<br /> screw clamp terminals 1 0.001…0.006 in² (0.75…4 mm²)flexible without cable end<br /> screw clamp terminals 1 0.0005…0.004 in² (0.34…2.5 mm²)flexible with cable end<br /> screw clamp terminals 2 0.002…0.006 in² (1.5…4 mm²)solid<br /> screw clamp terminals 2 0.001…0.006 in² (0.75…4 mm²)flexible without cable end<br /> screw clamp terminals 2 0.0005…0.002 in² (0.34…1.5 mm²)flexible with cable end | Tightening torque | 7.08…11.5 lbf.in (0.8…1.3 N.m) screw clamp terminals Philips No 2<br /> 7.08…11.5 lbf.in (0.8…1.3 N.m) screw clamp terminals flat Ø 6 mm<br /> 7.08…11.5 lbf.in (0.8…1.3 N.m) screw clamp terminals pozidriv No 2 |
| [Ue] rated operational voltage | Power circuit 690 V AC 50/60 Hz | [Ith] conventional free air thermal current | 20 A (at 122 °F (50 °C)) for power circuit |
| Irms rated making capacity | 110 A AC for power circuit conforming to NF C 63-110<br />110 A AC for power circuit conforming to IEC 60947 | Rated breaking capacity | 110 A at 415 V conforming to IEC 60947<br />110 A at 440 V conforming to IEC 60947<br />80 A at 500 V conforming to IEC 60947<br />110 A at 220...230 V conforming to IEC 60947<br />110 A at 380...400 V conforming to IEC 60947<br />70 A at 660...690 V conforming to IEC 60947 |
| Associated fuse rating | 25 A gG at <= 440 V for power circuit<br />25 A aM for power circuit | Average impedance | 3 mOhm - Ith 20 A 50 Hz for power circuit |
| Inrush power in VA | 30 VA (at 68 °F (20 °C)) | Hold-in power consumption in VA | 4.5 VA (at 68 °F (20 °C)) |
| Heat dissipation | 1.3 W | Operating time | 10...20 ms coil de-energisation and NO opening<br />10...20 ms coil energisation and NO closing<br />15...25 ms coil de-energisation and NC closing<br />5...15 ms coil energisation and NC opening |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1<br />B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 | Mechanical durability | 10 Mcycles |
| Maximum operating rate | 3600 cyc/h | Height | 2.3 in (58 mm) |
| Width | 1.8 in (45 mm) | Depth | 2.2 in (57 mm) |
| Product Certifications | CB Scheme<br />CCC<br />UL<br />CSA<br />EAC<br />CE<br />UKCA | Ambient Air Temperature for Storage | -58…176 °F (-50…80 °C) |
| Operating altitude | 6561.68 ft (2000 m) without derating |
