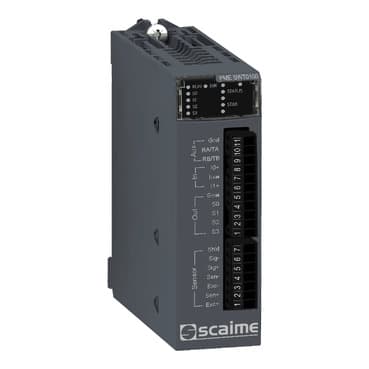

PMESWT0100
Product ID:33328
Updated: 2026/7/15
Key Features
- 1Deliver high-resolution weighing with 1 million points for precise measurements.
- 2Integrate seamlessly via Ethernet with Modicon X80 automation systems.
- 3Ensure durability in a compact 6x4x8 inch, 2-pound industrial design.
- 4Provide versatile control with 2 dosing and 2 threshold monitoring outputs.
- 5Simplify setup using EcoStruxure Control Expert and Unity Pro software.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Weighing transmitter module |
| Product Compatibility | BMEXBP... backplane<br />Head module BMECRA31210<br />BMEP58... processor | Power consumption in W | 3.5 W |
| Number of measurement input | 1 | Input voltage | 5 V DC |
| Resolution | 24 bits internal<br />1000000 points user factory calibrated 500000 at 2 mV/V | Measuring rate | 6...400 measurements per second internal<br />100 measurements per second external |
| Output Type | Reflex digital output | Discrete output number | 4 positive logic (source) total<br />2 for dosing<br />2 for threshold monitoring |
| Discrete output voltage | <= 55 V DC | Nominal output current | 400 mA |
| Response Time | 2 ms | Discrete input number | 2 positive logic for weighing functions |
| Voltage state 0 guaranteed | 0...3 V DC | Voltage state 1 guaranteed | 9...28 V DC |
| Discrete input current | 20 mA 24 V | Status LED | 1 LED (Green) module operating (RUN)<br />1 LED (Red) module error (ERR)<br />1 LED (Red) external fault (I/O)<br />1 LED (Green) communication (COM)<br />1 LED (Yellow) test mode (TEST)<br />1 LED (Green) calibration (CAL)<br />1 LED (Red) converter error (FAULT)<br />1 LED (Red) memory corruption (MEM ERR)<br />1 LED (Green) digital output status (S0)<br />1 LED (Green) digital output status (S1) |
| Net Weight | 0.514 lb(US) (0.233 kg) |
Specifications may be subject to change without notice
