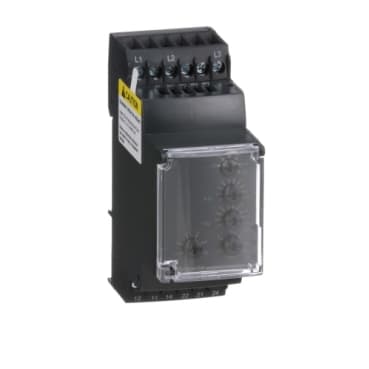

RM35TF30
Product ID:33457
Updated: 2026/7/14
Key Features
- 1Monitor phase sequence, failure, asymmetry, overvoltage, and undervoltage.
- 2Mount compactly on DIN rails for easy installation.
- 3Operate across a wide 220V to 480V AC voltage range.
- 4Adjust time delay from 0.1 to 10 seconds for precise control.
- 5Meet CE, CSA, RoHS, and UL standards for safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Harmony Control Relays | Relay Type | Multifunction control relay |
| Product Specific Application | For 3-phase supply | Relay name | RM35TF |
| Relay monitored parameters | Undervoltage and overvoltage in window mode<br />Phase sequence<br />Phase failure detection<br />Asymmetry | Measurement range | 220...480 V AC |
| time delay | Adjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault | Output contacts | 2 C/O |
| Nominal output current | 5 A | Contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 220...480 V | [Un] rated nominal voltage | , self-powered |
| Supply voltage limits | 194…528 V AC, 3 phase | Reset time | 1500 ms at 480 V |
| Maximum switching voltage | 250 V AC<br />250 V DC | Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 mA 5 V DC | Maximum switching current | 5 A AC<br />5 A DC |
| Control circuit voltage limits | - 12 % + 10 % Un | Power consumption in VA | 0…22 VA 400 V AC 50 Hz |
| Voltage detection threshold | < 194 V | Control circuit frequency | 50...60 Hz +/- 10 % |
| Measurement voltage limits | 176…528 V AC | Hysteresis | 2 % |
| delay at power up | 650 ms | Maximum measuring cycle | 140 ms measurement cycle as true rms value |
| Threshold adjustment voltage | 2...20 % of Un selected<br />-12...-2 % in the range 220 V AC<br />+2...+10 % in the range 480 V AC | Voltage range | 220...480 V phase to phase |
| Adjustment of asymmetry threshold | 5...15 % of Un selected | Repeat accuracy | 0.3 % time delay<br />0.5 % input and measurement circuit |
| Measurement error | < 1 % over the whole range with voltage variation<br />0.05 %/°C with temperature variation | Response time | < 200 ms (in the event of a fault) |
| Insulation resistance | > 500 MOhm 500 V DC IEC 60255-5<br />> 500 MOhm 500 V DC IEC 60664-1 | [Ui] rated insulation voltage | 400 V IEC 60664-1 |
| Supply frequency | 50/60 Hz +/- 10 % | Operating position | Any position without derating |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end<br />Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end<br />Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end<br />Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end | Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1 |
| Housing material | Self-extinguishing plastic | Local signalling | for power ON LED (green)<br /> for relay ON LED (yellow)<br /> for fault LED (yellow) |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 | Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles | Operating rate | <= 360 operations/hour full load |
| Utilisation category | AC-12 IEC 60947-5-1<br />AC-13 IEC 60947-5-1<br />AC-14 IEC 60947-5-1<br />AC-15 IEC 60947-5-1<br />DC-12 IEC 60947-5-1<br />DC-13 IEC 60947-5-1 | Safety reliability data | MTTFd = 399.5 years<br />B10d = 360000 |
| Width | 1.4 in (35 mm) | Net Weight | 0.29 lb(US) (0.13 kg) |
| Control Type | Without test button | Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4<br />Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3<br />Immunity for industrial environments conforming to IEC 61000-6-2 |
| Standards | IEC 60255-1 | Product Certifications | GL<br />UL<br />CSA<br />GOST<br />C-tick |
| marking | CE | Directives | 89/336/EEC - electromagnetic compatibility<br />73/23/EEC - low voltage directive |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient air temperature for operation | -4…122 °F (-20…50 °C) |
| Relative humidity | 95 % 131 °F (55 °C) IEC 60068-2-30 | Vibration resistance | 0.35 mm 5…57.6 Hz)IEC 60068-2-6<br />1 gn 57.6…150 Hz)IEC 60255-21-1 |
| Shock resistance | 15 gn 11 ms IEC 60255-21-1 | IP degree of protection | IP20 IEC 60529 terminals)<br />IP30 IEC 60529 casing) |
| Pollution degree | 3 IEC 60664-1 | Overvoltage category | III IEC 60664-1 |
| Dielectric test voltage | 2 kV AC 50 Hz, 1 min | Non-dissipating shock wave | 4 kV |
